Europe Color Bamboo Roof Tile IBR Roof Sheet Double Layer Roll Forming Machine

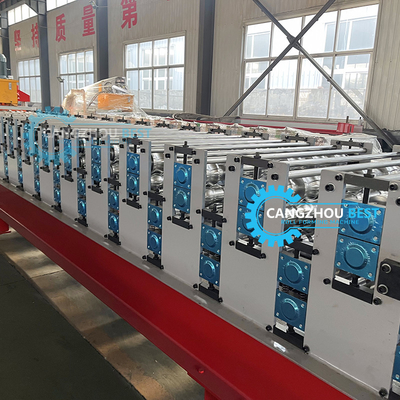

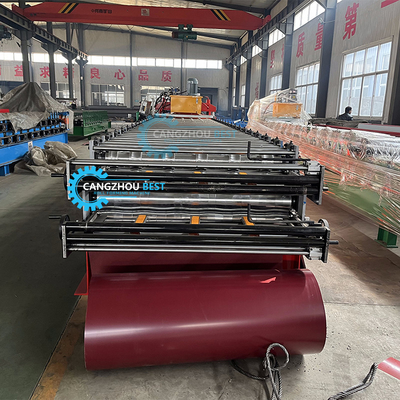

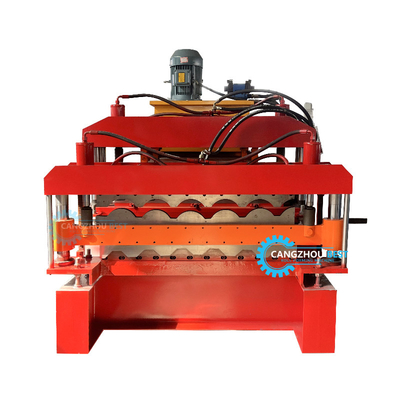

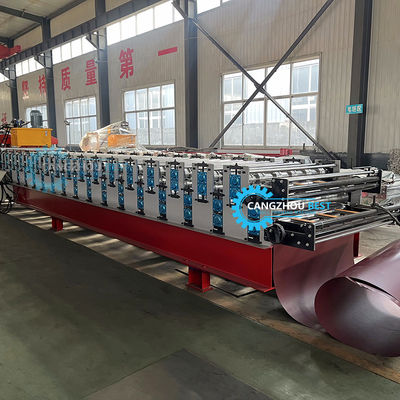

Large Image : Europe Color Bamboo Roof Tile IBR Roof Sheet Double Layer Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$8000---12000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Europe Color Bamboo Roof Tile IBR Roof Sheet Double Layer Roll Forming Machine

Description

Voltage:	380V 50Hz 3phases	Condition:	New
Weight:	6T Roof Sheet Roll Forming Machine	Use:	Roof/wall
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,	Control System:	PLC(imported Brand)
Tile Type:	Steel
Highlight:	Bamboo Double Layer Roll Forming Machine , IBR Roof Sheet Roll Forming Machine , Bamboo double layer roll forming machine

Technical Parameter

Item No.	Description	Offered Specification
1	Rolling speed	12m/min
2	Rolling thickness	0.3mm-0.8mm
3	Dimension	About 75000×1300×1500
4	Effective width	840/820mm
5	Feeding coil width	1000mm
6	Roller stations	About 11stations
7	Roller material	45 # forge steel
8	Shaft diameter	Φ70mm
9	Transmission	By chain 1 inch
10	Material of cutting	Cr 12 with quench HRC 65°

1	Commodity	Corrugated tile form machine
2	Type	XH-32E
3	Equipment Weight	10 tons
4	Outline Dimention	6280MM X 2000MM X 1500MM
5	Widthof the Sheet	750 MM TO 1000 MM
6	LENGTH OF THE SHEET	Max. 4500MM
7	MATERIAL TO BE CORRUGATED	FULL HARD GALVANIZED SHEETS
8	WIDTH RANGE OF SHEET	762MM,914MM,1000MM,1250MM
9	THICKNESS RANGE OF SHEET	0.14 MM TO 0.3 MM
10	DEPTH OF WAVE	18MM(±1.5MM)
11	PITCH OF WAVE	76MM (±2.0MM)
12	DRIVE	15KW
13	POWER	AC440V & 60HZ & 3P
14	CONTROL	AC220V & 60HZ
15	SPEED	10-12 STROKES PER MINUTE
16	OUTPUT	2-4 TONS PER HOUR
Note:CORRUGATION PARAMETERS:The tolerance of the width, depth, No,of waves of the roofing sheet after corrugated in accordance with JIS G3316 (1987) standard.

Europe Color Bamboo Roof Tile IBR Roof Sheet Double Layer Roll Forming Machine 0

Europe Color Bamboo Roof Tile IBR Roof Sheet Double Layer Roll Forming Machine 1
