High quality and low price roofing sheet making machine metal roof tile roll forming machine

Large Image : High quality and low price roofing sheet making machine metal roof tile roll forming machine

Product Details:

Place of Origin:	China
Brand Name:	BEST
Certification:	ISQ/CE
Model Number:	XY-1041

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 6500-13000/SET
Packaging Details:	Main machine naked and fastened with wire rope in the container.All electrics devices be packed with plastic film.
Delivery Time:	35 days
Payment Terms:	L/C,T/T
Supply Ability:	15 sets/ month

Contact Now

High quality and low price roofing sheet making machine metal roof tile roll forming machine

Description

Name:	Double Layer Roof Tile Roll Forming Machine Trapezoidal Tile Roof Board Wall Board Double Layer Machine	Material Of Roller:	45# Steel Polished And Coated With Chrome
Material Of Shaft:	45# Steel Polished And Coated With Chrome	Diameter Of Shaft:	70 Mm
Frame Panel Thickness:	20 Mm	Bottom Frame:	350 H-section Steel
Motor Power:	3kw	Raw Material:	0.3-0.8 Mm
Highlight:	metal roof tile roll forming machine , double layer roll forming machine with warranty , roofing sheet making machine low price

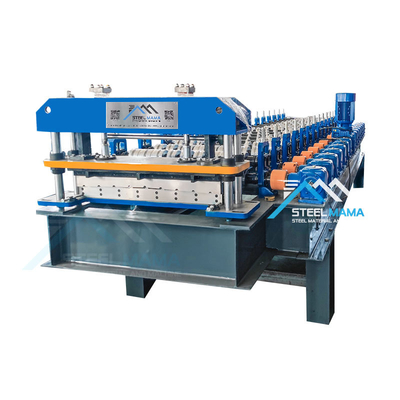

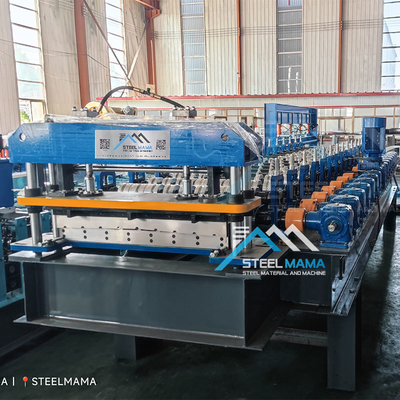

Double Layer Roof Tile Roll Forming Machine

High quality trapezoidal tile roof board wall board double layer machine for producing various steel roof and wall sheets.

Product Specifications

Attribute	Value
Name	Double Layer Roof Tile Roll Forming Machine
Material of roller	45# steel polished and coated with chrome
Material of shaft	45# steel polished and coated with chrome
Diameter of shaft	70 mm
Frame panel thickness	20 mm
Bottom frame	350 H-section steel
Motor Power	3kw
Raw material	0.3-0.8 mm

Product Description

Our double layer roof tile roll forming machine can produce different shapes of steel roof and wall sheets according to client specifications. The finished products are used in various construction applications including gymnasiums, airports, theatres, factories, warehouses, garages, and exhibition centers.

Working Flow

Decoiler → Feeding → Roll forming → Cut to length → Output table

Technical Parameters

1. Decoiler

Max. Width: 1250 mm
Inner Diameter: Φ450 - Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

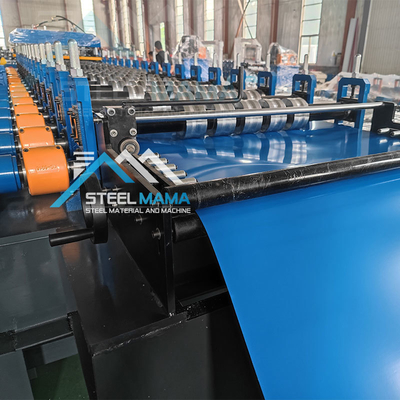

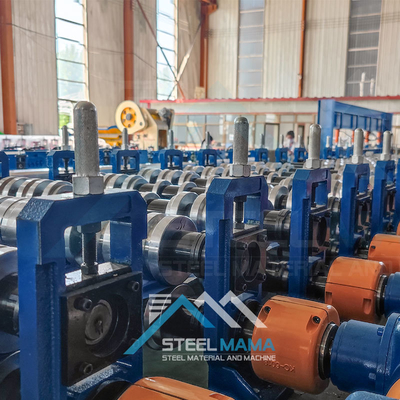

2. Roll Forming Machine

Material Thickness: 0.2-0.8mm PPGI and GI
NO. of roller Stations: 16 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power: 3kw
Driven type: 1＂Chain
Speed: 8-12m/min

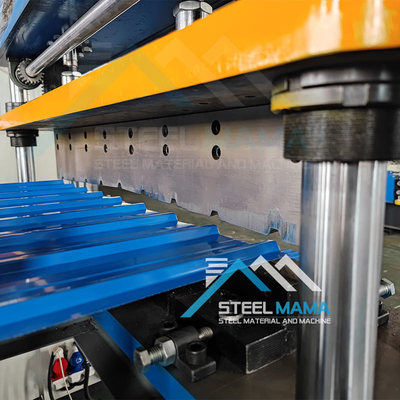

3. Cut-Off Device

Material for Cut-Off Modular: Cr12 steel after treatment
Hardness for Heat Treatment: HRC55 - 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

4. PLC Control Box

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Voltage: 380v/50HZ, 3Phase

Working Conditions

Working size	22m x 2m x 4m
Power supply	6kw
Frequency	50-60HZ
Wires/cables	4-6mm² (length according to workshop)
Labor cost	2 workers
Tools	Spanners and screwdriver
Lift device	3-5t forklift or crane

Installation and Training

On-site training available for buyers visiting our factory
Remote support including user manual and instructional videos
Optional technician dispatch to buyer's location (additional costs apply)

About Our Factory

Cangzhou Best Machinery Manufacturing Co., Ltd. is a professional manufacturer of high quality cold roll forming machines with over 20 years of engineering experience. We specialize in various roll forming machines including roof/wall panel machines, purlin machines, deck floor machines, and more.
