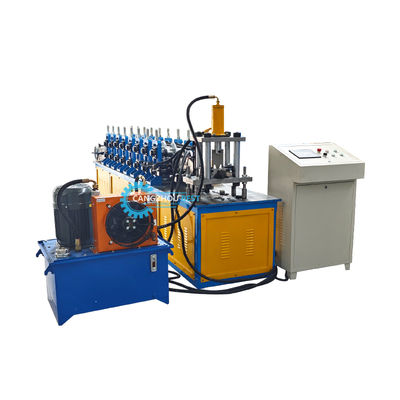

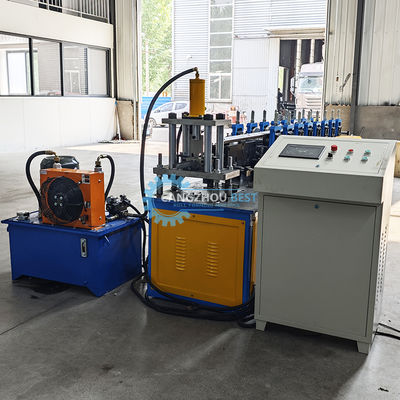

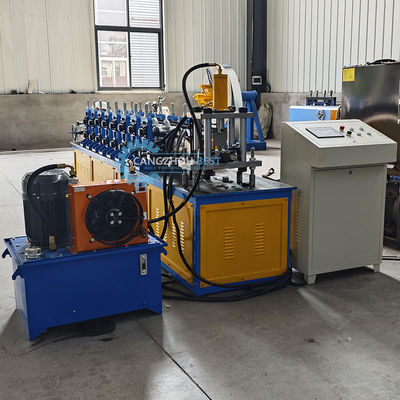

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Large Image : Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY50x24

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 8500/ SET
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Description

Product Name:	Ceiling Metal Stud And Track Roll Forming Machine With High Speed	Control System:	PLC
Cutting Type:	No Stop Hydraulic Cutting	Warranty:	2 Years
Lifetime:	10 Years	Roller Material:	Cr12 Steel
Shaft Material:	45# Steel	Raw Matetial:	0.3-1.5mm
Voltage:	380V/220V As Your Request	Speed:	20-30m/min
Highlight:	light steel frame roll forming machine , c-channel purlin roll forming machine , stud and track roll forming machine

Light Steel Frame Roll Forming Machine

Professional C-channel purlin roll forming machine for stud and track applications. Specialized manufacturers offering high-quality light keel roll forming solutions with comprehensive technical support and after-sales service.

Production Workflow

Decoiler → Feeding → Roll Forming → Punching → Cut to Length → Output Table

Machine Components

Component	Quantity
De-coiler	1 set
Feeding Guiding Device	1 set
Roll Forming Part	1 set
Hydraulic Cutting Device	1 set
Computer Control Box	1 set
Hydraulic System	1 set
Run-out Table	1 set

Technical Specifications

Control System: PLC Panasonic Inverter

Main Frame: 350mm H-Beam

Main Power: 5.5 kW

Pump Power: 3 kW

Power Supply: 3-Phase, 380V, 50Hz

Forming Speed: 12-14 m/min

Hydraulic Pressure: 18-20 MPa

Forming Size: 80mm

Feeding Thickness: 1.5-3.2mm

Roller Stations: 12 Stands

Roller Diameter: 60mm

Backboard Thickness: 16mm

Chain Size: 66mm

Cutter Standard: Cr12

Roller Standard: Cr12

Cr-Plating Size: 0.05mm

Overall Size: 9500×1400×1350mm

Total Weight: 6T

Working Conditions

Requirement	Specification
Machine Size	10m x 1.2m (L x W)
Working Size	20m x 2.5m (L x W)
Power Supply	8.5 kW
Frequency	50-60 Hz
Wires/Cables	4-6mm² (length according to workshop)
Labor Cost	2 workers
Tools	Spanners and screwdriver
Lift Device	3-5T forklift or crane
