Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50x24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 8500/ SET
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month
Contact Now

Steel profile fabrication, metal stud and track roll forming machines, light steel framing (CD, UD, CW, UW), channel drywall machines

Description
Product Name: Ceiling Metal Stud And Track Roll Forming Machine With High Speed Control System: PLC
Cutting Type: No Stop Hydraulic Cutting Warranty: 2 Years
Lifetime: 10 Years Roller Material: Cr12 Steel
Shaft Material: 45# Steel Raw Matetial: 0.3-1.5mm
Voltage: 380V/220V As Your Request Speed: 20-30m/min
Highlight:

steel profile roll forming machine

,

metal stud track forming machine

,

light steel framing channel machine

Steel Profile Fabrication Machines
We specialize in manufacturing high-quality light keel roll forming machines, including metal stud and track roll forming machines for light steel framing applications (CD, UD, CW, UW) and channel drywall machines.
Production Process
Decoiler → Feeding → Roll Forming → Punching → Cut to Length → Output Table
Machine Components
ComponentQuantity
De-coiler1 set
Feeding Guiding Device1 set
Roll Forming Part1 set
Hydraulic Cutting Device1 set
Computer Control Box1 set
Hydraulic System1 set
Run-out Table1 set
Technical Specifications
ParameterSpecification
Control SystemPLC Panasonic Inverter
Main Frame350mm H-Beam
Main Power5.5 kw
Pump Power3kw
Power Supply3-Phase, 380V, 50Hz
Forming Speed12-14m/min
Hydraulic Pressure18-20MPa
Forming Size80mm
Feeding Thickness1.5-3.2mm
Roller Station12 Stands
Roller Diameter60mm
Backboard Thickness16mm
Chain Size66mm
Cutter StandardCr12
Roller StandardCr12
Cr-Plating Size0.05mm
Overall Size9500×1400×1350mm
Total Weight6T
Working Conditions
Machine Size10m x 1.2m (L x W)
Working Size20m x 2.5m (L x W)
Power Supply8.5kw
Frequency50-60Hz
Wires/Cables4-6mm² (length according to workshop)
Labor Cost2 workers
ToolsSpanners and screwdriver
Lift Device3-5t forklift or crane

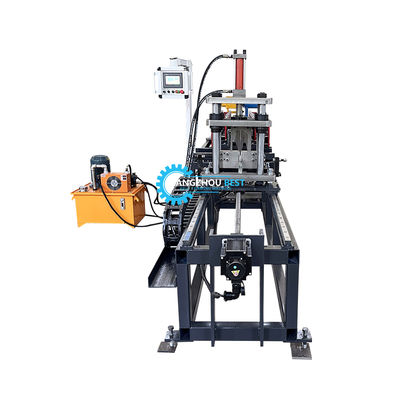

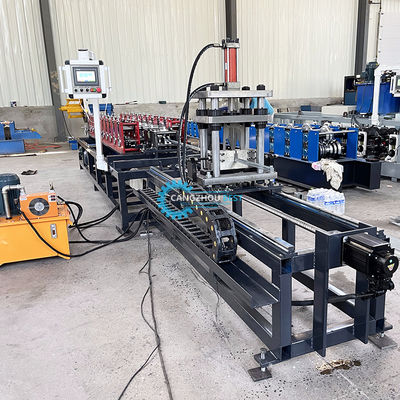

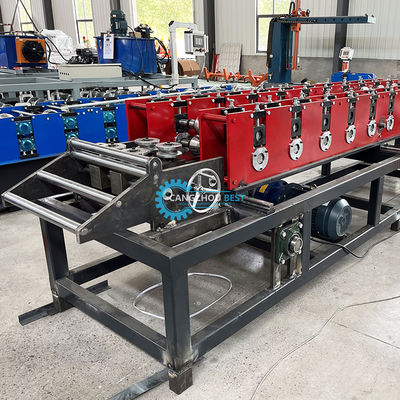

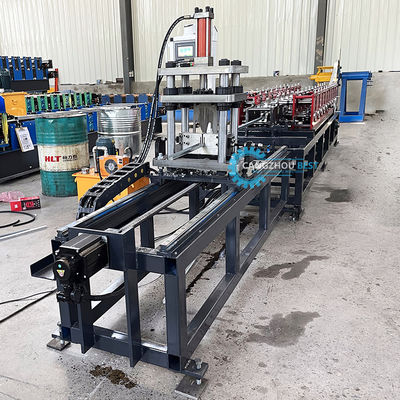

Product Images
Steel profile fabrication, metal stud and track roll forming machines, light steel framing (CD, UD, CW, UW), channel drywall machines 0 Steel profile fabrication, metal stud and track roll forming machines, light steel framing (CD, UD, CW, UW), channel drywall machines 1 Steel profile fabrication, metal stud and track roll forming machines, light steel framing (CD, UD, CW, UW), channel drywall machines 2
Customer Service
Re-sale Service: Factory visit invitations, competitive pricing with reliable service and quick response times.
Selling Service: Production schedule updates, prompt delivery, cost-effective shipping solutions, and fast document processing.
After-sale Service: Available for support via WhatsApp or Telephone at any time.
