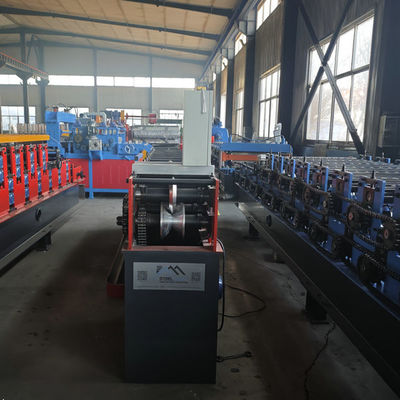

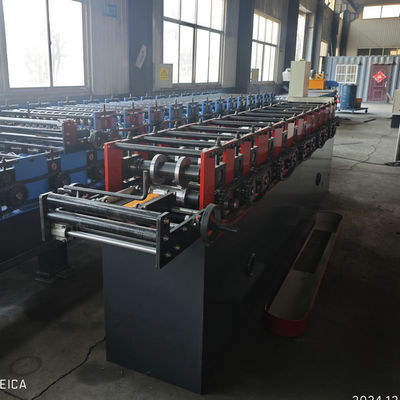

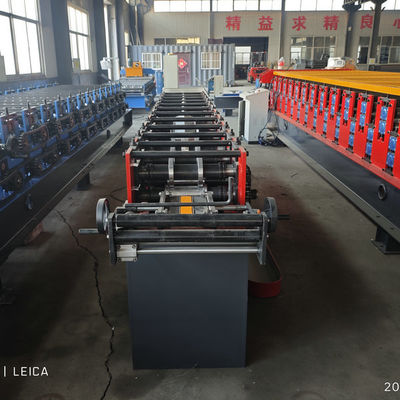

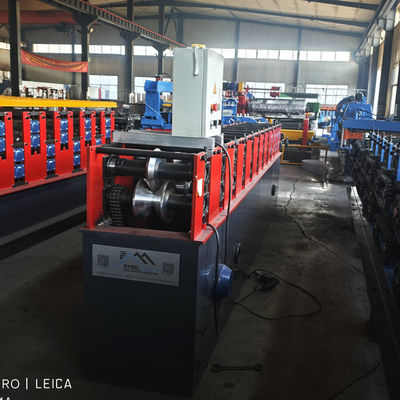

Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine

Large Image : Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000---15000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine

Description

Name:	Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine	Material Thickness:	0.6-1.6mm (235-345Mpa)
Shaft:	High Quality 45# Steel With Heat Treatment.	Forming Speed:	About 20m/min
Controlling System:	PLC
Highlight:	semi auto angle keel roll forming machine , steel profile corner bead machine , stud and track roll forming machine with warranty

Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine

Advanced semi-automatic roll forming machine designed for producing angle keel profiles and corner bead steel profiles with precision and efficiency.

Technical Specifications

No.	Item	Specification	Optional
1	Suitable material	Type: Galvanized Coil, PPGI, Carbon steel Coil Thickness: 0.25-1.2mm Yield strength: 250-550MPa Tensile stress: G350MPa-G550MPa
2	Nominal forming speed	10-40 m/min	Customizable
3	Forming station	8-14
4	Decoiler	Manual decoiler	Hydraulic or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers' material	Steel #45	GCr15
10	Station structure	Wall panel station	Forged Iron station or torri stand structure
11	Punching system	No	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Customizable
14	Machine color	Industrial blue	Customizable

Main Components

No.	Item	Quantity
1	Uncoiler	1 Set
2	Guide Device	1 Set
3	Roll Forming Machine	1 Set
4	Hydraulic Station	1 Set
5	Ran-out Table	2 Sets
6	PLC System	1 Set

Machine Components and Specifications

3 Ton Electric Uncoiler

Max weight: 2 TON
I.D of Coil: 460-560mm
Steel Plate and C beam welded construction
Function: Holds and uncoils coils manually with adjustable mandrel for coil tensioning

Feeding and Guiding Device

Width Range: 200-300mm
Feeding Type: Manual feeding
Guiding Type: Manual adjustment
Function: Prevents material deviation during operation

Metal Stud and Track Roll Forming Machine

Machine Structure: C beam welded main base with internal driven motor
Forming Speed: 12-15 m/min
Machine Voltage and Frequency: 415V, 50Hz, 3 Phase
Material of Rollers: GCR15, CNC processed, HRC58-62, chromed 0.05mm thickness
Forming Steps: 18
Material of Shaft: ASTM1045, lathe processed and polished
Diameter of shaft: 60mm
Material of Spacers: ASTM1045, 8mm wall thickness, chromed and hardened
Driven Motor: Chinese Guomao Brand, 5.5KW
Transmission: Gear-driven system
Machine Side Wall Panel: 18mm thickness
