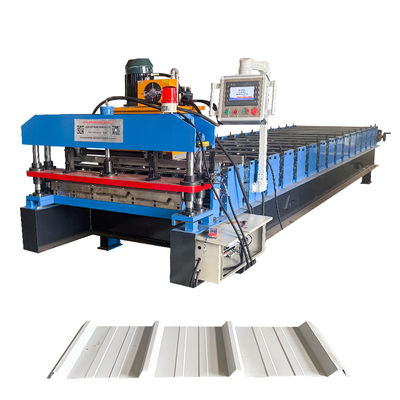

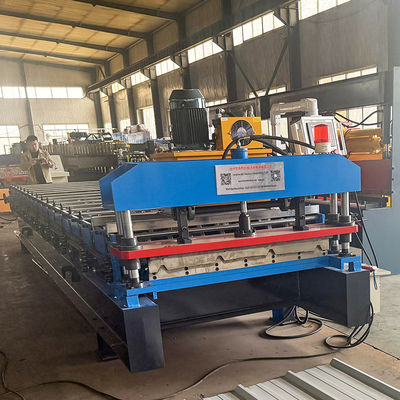

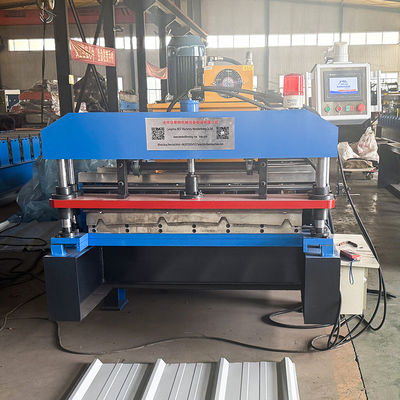

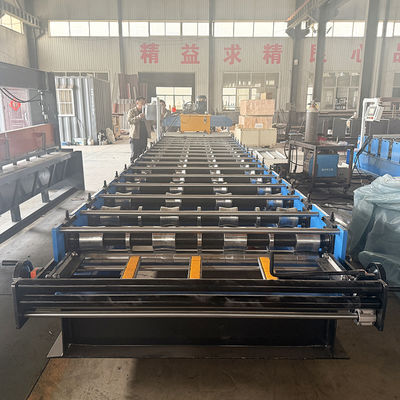

TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity

TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity
TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity
TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity

Large Image :  TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY30-350-1050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 15500
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month
Contact Now

TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity

Description
Product Name: Roofing Sheet Roll Forming Machine Key Word: Steel Profile Roof Sheet Roll Forming Machine
Color: Blue Or As Your Request Decoiler Capacity: 5t
Cutting Type: Hydraulic Processing Material: PPGI And GI
Life Time: More Than 10 Years
Highlight:

TR4 Design Roofing Sheet Roll Forming Machine

,

13-22 Forming Stations Roof Panel Roll Forming Machine

,

5000 kg Decoiler Capacity Metal Roofing Machine

Peru Design Tr4 Roofing Sheet Roll Forming Machine PLC Control System
Roofing Sheet Roll Forming Machine Decoiler
  • Max. Width: 1000 mm
  • Inner Diameter: Φ508 - Φ610 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 5000 kgs
Roofing Sheet Roll Forming Machine Working Flow
TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity 0
Roofing Sheet Roll Forming Machine Components
No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
Roofing Sheet Roll Forming Machine Specifications
Item Parameter Detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel

Plate type | Pillar type(option)

Plate thickness: 20mm | Pillar thickness: 30mm

Painting: normal painting | painting: Chroming
Forming stations 13-22 stations (according to the profiles)
Machine rollers High grade No.45 forged steel, plated hard chroming with thickness 0.05mm
Processing way: cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high grade No.45 steel after treatment
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing (option)
Driving system 1 inch chain or gear box (option)
Machine power 3kw-11kw (according to the profiles)
Machine working speed 8-12m/min or 10-30m/min (option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm
Cutting Specifications
Type Details
Bearing sliding type

Blade material: Cr12mov quenching and grinding

Frame processing: the whole bottom frame is grinding for high-precision

Blade processing: wire-electrode cutting, but the upper blade can not be straight (this is technology)

Working: Hydraulic type
Stacker Options
Type Manual Auto (option)
Length 1.5m-2m 6m or 12m
PLC Specifications
Main Item Parameter Detail
PLC Delta (standard) or according to your request
Inverter China brand (standard) or according to your request
Touch screen Mcgs (standard) or according to your request
Encoder China brand (standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase
TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity 1
Roofing Sheet Roll Forming Machine FAQ
Q: Can you make machine according to my design?
A: Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
Q: What payment terms you accept?
A: 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
Q: What is the warranty for our machine?
A: We have 2 years guarantee, and provide whole life's technical support.
TR4 Design Roofing Sheet Roll Forming Machine with 13-22 Forming Stations and 5000 kg Decoiler Capacity 2
