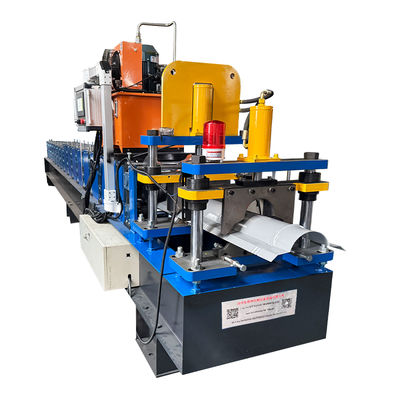

Galvanized Ridge Cap Roll Forming Machine with 45# Forged Steel Rollers and Cr12 Cutting Blades for Steel Profile IBR

Large Image : Galvanized Ridge Cap Roll Forming Machine with 45# Forged Steel Rollers and Cr12 Cutting Blades for Steel Profile IBR

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000-10000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/months

Contact Now

Galvanized Ridge Cap Roll Forming Machine with 45# Forged Steel Rollers and Cr12 Cutting Blades for Steel Profile IBR

Description

Name:	Metal Galvanized Ridge Cap Roll Forming Machine For Steel Profile IBR	Voltage:	380V 50Hz 3phases
Condition:	New	Tile Type:	Colored Steel
Use:	Roof	Certification:	CE/ISO9001
Raw Material:	Ppgi Or Galvanized Sheet Coil	Key Words:	Roll Top Ridge Cap Roll Forming Machine
Highlight:	45# Forged Steel Rollers Ridge Cap Roll Forming Machine , Cr12 Cutting Blades Ridge Cap Roll Forming Machine , 13 Forming Steps Ridge Cap Roll Forming Machine

Metal Galvanized Ridge Cap Roll Forming Machine for Steel Profile IBR

Product Description

High-performance roll forming machine designed for producing metal galvanized ridge caps for IBR steel profiles with precision and efficiency.

Technical Parameters

Processing material: aluzinc/galvanized steel/colored steel coil
Material thickness: 0.25-0.8mm
Main motor power: 4 kW
Pump power: 4kW
Shaft diameter: 75mm
Forming steps: 13 steps
Roller material: 45# forged steel with hard chrome plating
Main frame: 350H steel
Medium plate thickness: 16mm
Control system: Delta PLC computer control with touch screen and inverter
Speed: about 2-4 meter/min
Machine size: 6500×800×1300mm
Machine weight: about 2Ton
Power supply: 380V, 3 PHASE, 50HZ (customizable)

Specifications

Feature	Specification
Suitable to process	Color alu-zinc steel coil
Roller	12-16 Rows
Dimensions	6.7×1×1.5m
Motor Power	5.5Kw
Thickness of the plate	0.3-0.8mm
Productivity	3-5m/min
Material of the cutting blade	Cr12, Quenched treatment 58℃-60℃
Diameter of the roller	Φ50mm
Weight	About 3200kgs
Main structure of the machine	350H beams
Processing precision	Within 1.0mm
Side panel of machine	16mm
Voltage	380V 50Hz 3phases (customizable)
Control system	PLC control (Delta)

Machine Components

Manual decoiler: Supports steel coil and uncoils it manually. Loading capacity: 5T, Inner diameter: 500-508mm

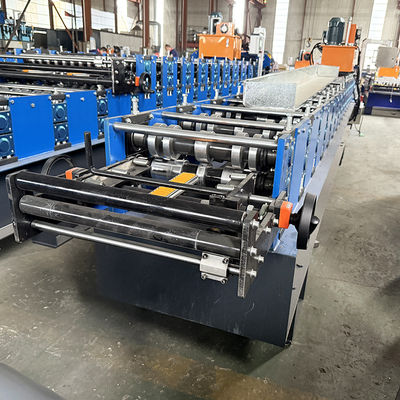

Feeding table: Guides raw material through processing to ensure uniform, parallel products.

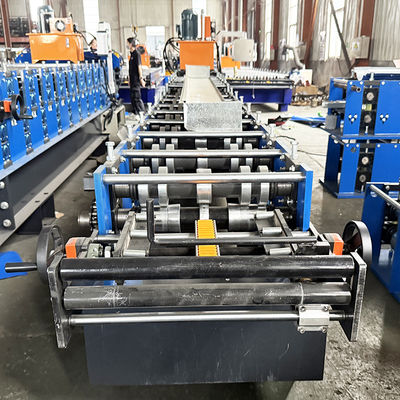

Main rollers: Made of high-grade 45# forging steel with polished surfaces and hard plating for smooth operation.

Computer Control Cabinet: Features Delta PLC, touch screen, and frequency system with multilingual support.

Motor driver: 5.5Kw main motor with options for German brands or customer preference.

Hydraulic station power: 4Kw hydraulic station (Lichao brand, Shanghai).

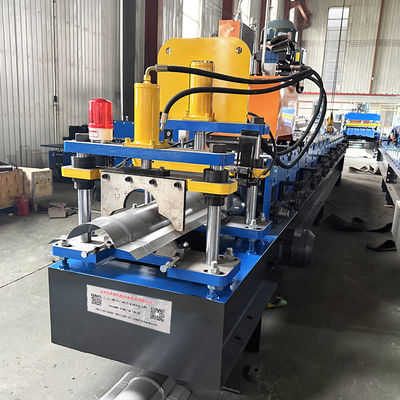

Cutting head: Motor-driven with automatic dimension control. Blades made of Cr12 with quenching treatment.

Received goods table: Welded steel with support rollers for product collection (2 pieces, 3 meters each).
