380V 50Hz 3phases 15 Stations High Grade 45# Steel Ridge Cap Roll Forming Machine with Roof Ridge Cap Machine

Large Image : 380V 50Hz 3phases 15 Stations High Grade 45# Steel Ridge Cap Roll Forming Machine with Roof Ridge Cap Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000-10000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/months

Contact Now

380V 50Hz 3phases 15 Stations High Grade 45# Steel Ridge Cap Roll Forming Machine with Roof Ridge Cap Machine

Description

Name:	Color Steel Roof Ridge Cap Roll Forming Machine With Single Chain Transmission	Key Word:	Plc Control Ridge Cap Roll Forming Machine
Voltage:	380V 50Hz 3phases	Condition:	New
Weight:	About 3 Tons	After-sales Service Provided:	Engineers Available To Service Machinery Overseas

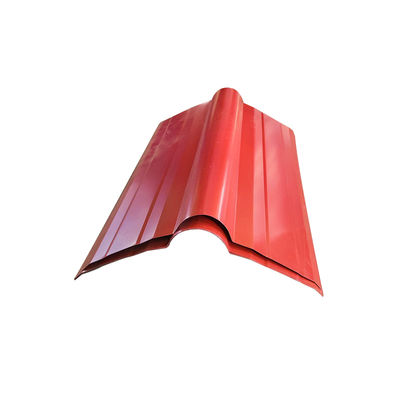

Use:	Produce Ridge Cap Tile	Certification:	CE/ISO9001
Highlight:	380V 50Hz 3phases Ridge Cap Roll Forming Machine , 15 Stations Roof Ridge Cap Machine , High Grade 45# Steel Ridge Cap Roll Forming Machine

Color Steel Roof Ridge Cap Roll Forming Machine With Single Chain Transmission

This professional roll forming machine produces high-quality ridge caps that provide both aesthetic finishing and effective watertight protection for roof ridges and hips.

Key Features

Provides watertight barrier and aesthetic finish for roof ridges and hips
Extends roof lifespan with industry-leading protective design
Multiple metal material options available for design flexibility
Custom manufacturing available based on customer drawings or samples

Main Components

Component	Quantity
Decoiler	1 Unit
Feeding guide	1 Unit
Main roll forming machine	1 Unit
Hydraulic cutting	1 Unit
Hydraulic station	1 Unit
PLC computer control	1 Unit
Output table	1 Unit

Technical Specifications

1. Manual Decoiler

Specification	Detail
Capacity	Max load 3000KG
De-coiler type	Manual passive type de-coiler

2. Feeding Guide

Straightens and flattens coil material after de-coiling, ensuring proper feeding into the forming machine.

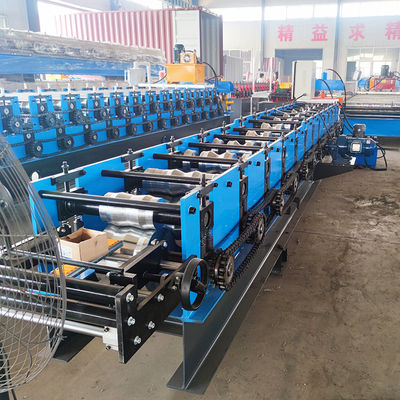

3. Main Roll Forming Machine

Specification	Detail
Main motor power	5.5KW
Roller Stands	Approx. 15 stations (depend on final design)
Machine frame stand	Welded structural steel with shot blasting treatment
Forming Structure	Guiding Column
Transmission	Chain drive
Material of Roller	High grade 45# steel, roller surface with 0.05mm hard chrome HRC58-62
Material Shaft	High grade 45# steel with heat treatment
Shaft Diameter	¢ 70mm

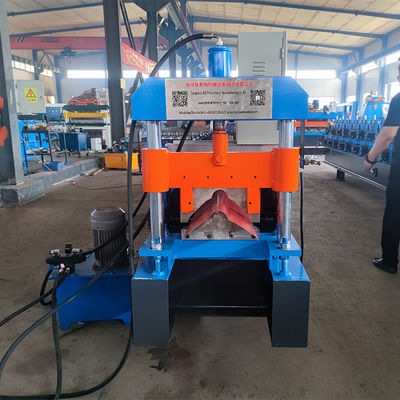

4. Cutting Device & Hydraulic Station

Specification	Detail
Cutting method	Profile-matched die cutting with zero waste
Cutting type	Hydraulic cutting
Blade material	Cr12 with quenched treatment
Cutting Tolerance	+/-1.5mm
Heat Treatment of Cutting Blade	HRC50-60
Hydraulic Power	2.2KW

5. PLC Control System

Specification	Detail
Control technology	PLC with frequency adjust speed for automatic production
Interface	User-friendly touch screen for setting batches, plate length, and quantity
Measurement	Encoder for counting and length measurement
Operation Type	Touch screen + Button
Electrical Control	PLC frequency control system with touch screen
PLC Brand	PANASONIC
Encoder	Omron Brand
Control board size	700mm (L) x 1000mm (H) x 300mm (W)

6. Run-out Table

Supports finished panels with two non-powered tables capable of handling panels up to 10000mm in length. Constructed with welded square-steel frames for durability.
