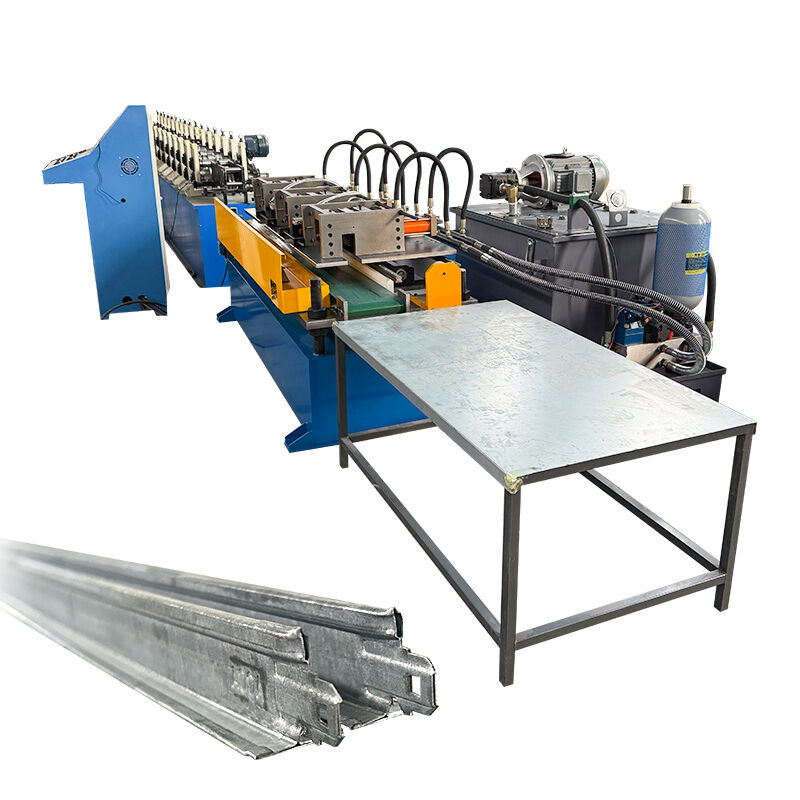

Fast Speed T24X26 Hydraulic Punching Cross Ceiling T Grid Roll Forming Machine

Large Image : Fast Speed T24X26 Hydraulic Punching Cross Ceiling T Grid Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	CHBEST
Certification:	CE,SGS,BV
Model Number:	YX-24x26

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD9500-35500/set
Packaging Details:	40GP/20GP container
Delivery Time:	5-60days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20sets/month

Contact Now

Fast Speed T24X26 Hydraulic Punching Cross Ceiling T Grid Roll Forming Machine

Description

Name:	High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine	Place Of Origin:	Hebei, China
Rolling Thickness:	0.3-0.8mm	Main Motor Power:	5.5kw
Control System:	PLC	Tile Type:	Steel
Power:	380V 50Hz	Production Capacity:	25-30m/min
Key Selling Points:	High Productivity
Highlight:	Fast speed hydraulic punching machine , T24X26 ceiling T grid former , Roll forming machine with warranty

Fast Speed T24X26 Hydraulic Punching Cross Ceiling T Grid Roll Forming Machine

Product Features

Touch screen control equipment for easy operation
Excellent surface finish - galvanized plates maintain zinc coating, color coatings preserve paint
Precise 1:1 matching with design drawings
Sturdy, durable mechanical equipment with minimal failures and low maintenance costs
Low profile production waste rate for cost savings

Brief Introduction

This equipment is designed for producing door frames, window rail supports, storage racks, drawer sliders, light steel keels, pipes, highway guardrails, and similar profiles. The complete production line includes a material-putting rack, forming main machine, and hydraulic set-length punching-cutting machine. Features waste-free shearing technology that eliminates material waste and reduces production costs while maintaining high efficiency.

Machine Configuration

Main T: Equipped with inverter motor, production line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked with main forming machine for automated punching and cutting. Two heads and middle holes are punched and cut-off simultaneously after forming.

Cross T: Equipped with both inverter and servo motors, production line speed: 30M per minute. Main machine operates at constant speed, tracked by servo trace system that automatically follows main machine speed for precise punching and cutting. Two heads and middle holes are punched and cut-off simultaneously after forming.

Technical Specifications

Component	Specifications
Manual Decoiler	Material coil inner diameter: 450mm-550mm Max coil width: 300mm Carrying capacity: 1.5T
Forming Device	Shaft material: High grade No.45 steel after treatment Outer diameter: 50mm Roller material: Cr12 polished and chrome coated HRC55-60° Forming speed: 30m/min Main motor power: 5.5 kw Roller stations: 10-12 stations Voltage: 380v, 50Hz, 3 phase Main frame structure: Memorial arch structure Control device: Automatic computer control by PLC Cutting device: Hydraulic tracking cutting Transmission: Gear drive
Hydraulic Cutter	Blade material: Cr12 mould steel with quenched treatment 55-60°C Cutting system: Advanced hydraulic drive, automatic cutting after forming with no distortion or waste
Control System	Type: PLC Frequency Control System with touch screen Length Error: ±2mm
Output Table	Simple design for loading finished products Length: 6m

Machine Components

No	Name	Unit	Qty	Details

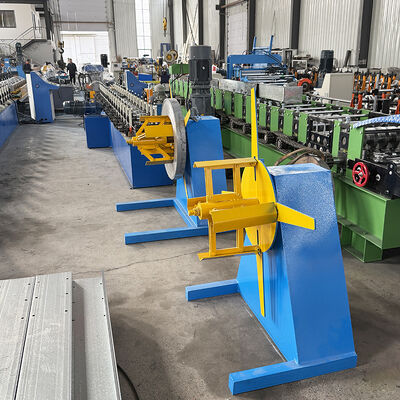

1	Manual Decoiler	set	2	Max width 300mm Inner diameter 460-510mm Max loading capacity 1000kg Manual operating type Manual expansion to tighten coil Break down drive stops entire line when decoiler idle
2	Feeding Table	set	1

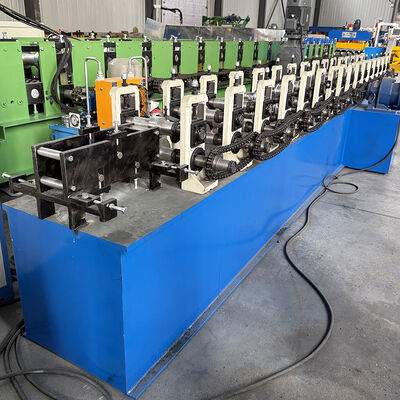

3	Forming Rollers	set	1	Forming Station: 16 nos Roller material: Cr12 Hard treatment: HRC 58-60 Shaft diameter: 40mm Shaft material: 40Cr, heat treated, refined grinded Machine frame: Steel welding Main sidewall thickness: 25mm Driven by universal joints via gearbox Roll forming motor: 5.5kw with frequency inverter Gearbox: RV worm gearbox

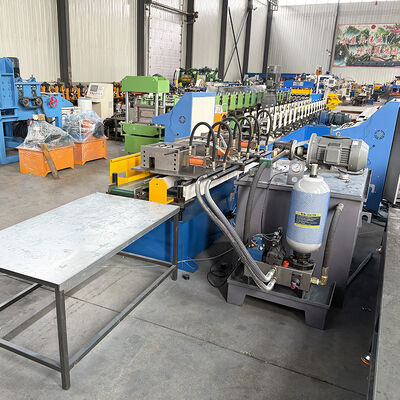

4	Hydraulic Cutting with Hole Punching	set	1	Hydraulic pump stand: 1 set Hydraulic Components: Taiwanese Hydraulic System with wind cooler Edge cutting: 2 sets both ends Middle joint hole punching: 23 sets/152.4mm Fire testing hole: 2 sets both ends Mould standard: SKD-11 Steel Japanese Mould frame & plate: S45C Mould pin: SKH-9 steel Japanese All mould treatment by slow-feeding Nc wire cutting
5	Profile Discharger	set	1	Driven mechanical Auto Head Full automatic operation synchronized with forming machine
6	Electric Control System	set	1	Frequency converter: Silin, Taiwanese PLC: Fatek, Taiwanese Touch screen: Weinview Taiwanese Profile length cutting stops forming machine then cuts Operational controller: Touch screen, knob switch, emergency stop Power supply: 380V 50Hz 3 phase

Why Choose Our Equipment

Custom design and manufacturing of roll forming machines according to customer specifications
Over 20 years of industry experience in producing durable, high-performance equipment
Optimal balance of quality and price with accurate measurement and user-friendly operation
Comprehensive services including technical guidance, production, installation, debugging, and maintenance
Proven track record with exports to multiple regions and high customer satisfaction
