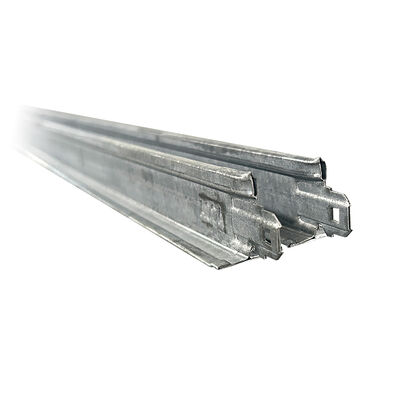

High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine
Main T: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked withmain forming machine,punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming.
Cross T: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main machine with constant speed,it is tracedby the servo trace system, automatic tracing the speed of the main machine, punching and cutting automatically. Two heads and middle holeare punched and cut-off at the same time after forming.

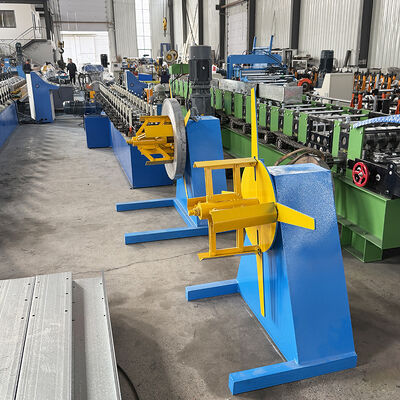

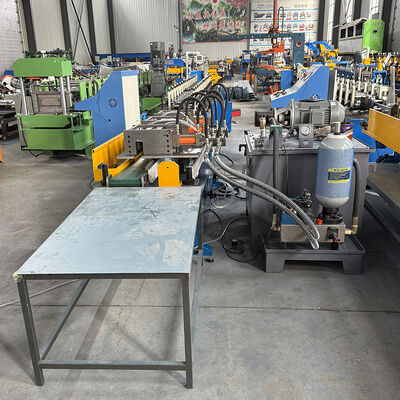

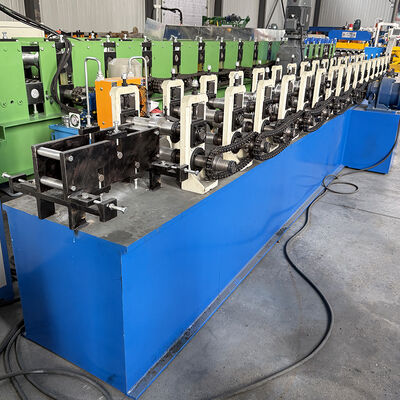

High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine Machine Photos:
High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine Technician parameter
| No. |
item |
Parameter(all is subject to our final design) |
|
1
|
Suitable raw material |
Type |
Common galvanized & pre-painted steel |
| Yield strength |
235MPa(or other high strength steel) |
| Thickness(mm) |
0.4-0.7 |
| width(mm) |
According to final design |
| 2 |
Manual uncoiler’s capacity |
Max.5tons |
| 3 |
Forming speed(m/min) |
About 25-30m/min |
| 4 |
Main motor power(KW) |
5.5kw |
| 5 |
Hydraulic power(KW) |
5.5kw |
| 6 |
Forming roller groups |
Around 19-20 groups |
| 7 |
Raw material of forming roller |
High quality No.45 steel |
| 8 |
Raw material of cutting blade |
Cr12mould steel with quenched treatment |
| 9 |
controlling system |
Mitsubishi PLC& converter |
| 10 |
Suitable industrial voltage |
According to your special requirement |
| 11 |
Machine weight |
About 6.2tons |
High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine Main T Grid Machine Working Flow:
High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine Cross T Grid Machine Working Flow:
High Speed Hydraulic Punching T38X24 Main T Grid Cold Roll Forming Machine Loading:
Standard Export Packing.
1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
About Us:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
