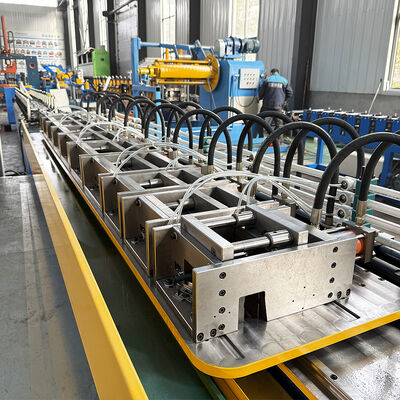

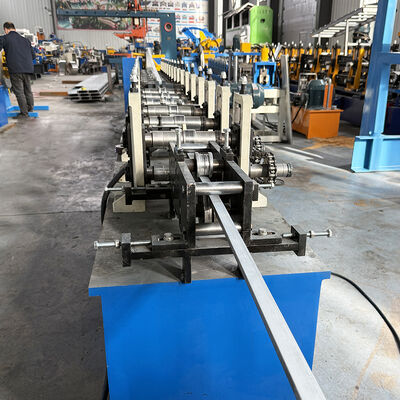

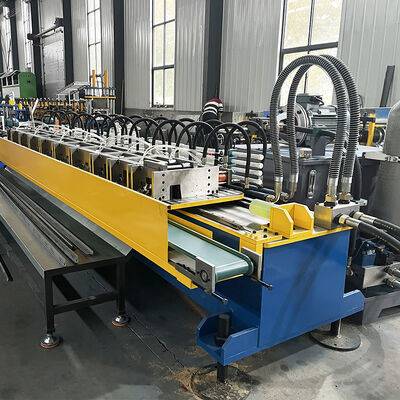

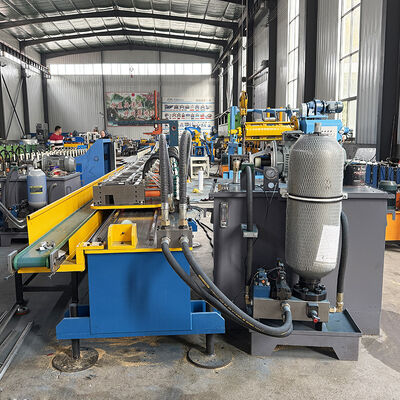

Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine

Large Image : Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY24x36

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine

Description

Product Name:	Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine	Color:	Blue Or According To Your Requirement
Control System:	PLC	Cutting Type:	Non-stop Cutting
Warranty:	2 Years	Lifetime:	10years
Highlight:	Metal ceiling T profile roll forming machine , Steel T bar making machine , Stud and track roll forming machine with warranty

Metal Ceiling T Profile Main T / T Bar Steel Making Roll Forming Machine

The T-bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), typically sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with lengths of 600mm, 1200mm (cross tees) and 3600mm (main runner), although many other sizes exist on the market including Imperial system variations.

Machine Components

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

Technical Specifications

1. Decoiler

Max. Width: 500mm
Inner Diameter: Φ450 - Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs

2. Roll Forming Machine

Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 0.2-0.4mm
Rollers: 16 Groups
Material for Rollers: Cr12 steel
Material for shaft: 45# steel (quenching and Harding and chroming)
Hardness for Heat Treatment: HRC55 - 60
Diameter of shaft: 40mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 5.5kw
Driven type: Chain

3. Cut-Off and Punching Device

Material for Cut-Off Modular: Cr12 steel
Hardness for Heat Treatment: HRC55 - 60
Cut-Off Type: Hydraulic, Automatic Cut-Off
Material for punching die: Cr12 steel
Power: 5.5kw

4. PLC Control Box

Type: PLC Frequency Control System with touch screen
Length Error: ±1mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (customizable to customer requirements)

Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter specializing in the design, development and production of all kinds of roll forming machines. Located in Cangzhou, China, with convenient transportation access, all of our products comply with international quality standards and are greatly appreciated in various markets worldwide.

Working Conditions

Working size	30m x 2m x 4m
Power supply	8.5kw
Frequency	50-60HZ
Wires/cables	4-6mm² (length according to workshop)
Labor cost	2 workers
Tools	Spanners and screwdriver
Lift device	3-5t forklift or crane

Installation and Training

If buyers visit our factory, we provide hands-on training for installation and operation, including worker/technician training
For remote installation, we provide comprehensive user manuals and instructional videos
On-site technician service available with arrangement of round trip tickets, accommodation, meals, and daily salary of USD100 plus visa costs
