Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Large Image :  Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY65
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month
Contact Now

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Description
Product Name: Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
Material: PPGI/ GI Botttom Frame: 360H Steel
Highlight:

automatic laser welding pipe machine

,

down spout roll forming machine

,

change size pipe forming equipment

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine

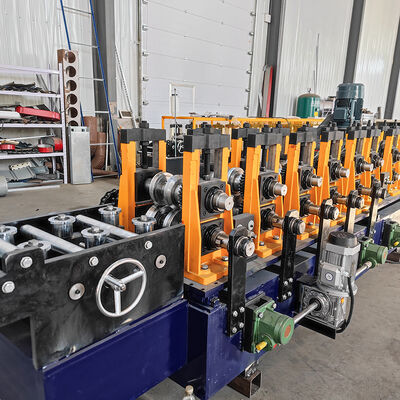

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 0
Working Process Flow
  • Decoiler → Feeding → Roll Forming → Laser Welding → Cut to Length → Output Table
Machine Components
De-coiler - 1 set
Forming machine - 1 set
Laser welding machine - 1 set
Cutting device - 1 set
PLC control box - 1 set
Hydraulic pump station - 1 set
Production support table - 1 set
Decoiler Specifications
Type Manual Type (Standard) Hydraulic Type (Optional)
Width 500mm 600mm
Capacity Max 5 tons 5-15 tons
Inner Diameter φ450-550mm φ450-550mm
Outer Diameter φ1500mm φ1800mm
Roll Forming Machine Specifications
  • Material Thickness: 0.7-2.0mm
  • Number of Roller Stations: 16 stations
  • Roller Material: GCR15 steel polished and chrome coated HRC58-62°
  • Shaft Material: High grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (Shanghai brand)
  • Shaft Diameter: 80mm (Solid shaft)
  • Bottom Frame: 350*175*8mm H steel
  • Frame Panel Thickness: 20mm
  • Driven Type: 1.2 inch Chain
  • Speed: 4-6 m/min
  • Cooling system included
  • Lubrication system included

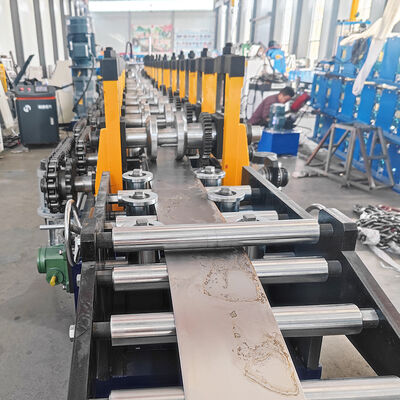

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 1
Cutting System Specifications
Type Mould Type
Blade Material Cr12mov quenching and grinding
Frame Processing Whole bottom frame grinding for high-precision
Blade Processing Wire-electrode cutting (upper blade not straight - technical requirement)
Working Type Hydraulic
Stacker Options
Type Manual Auto (Optional)
Length 2 pieces 6m or 12m
PLC Control System
Main Item Parameter Detail
PLC Delta (standard) or according to request
Inverter China brand (standard) or according to request
Touch Screen Mcgs (standard) or according to request
Encoder China brand (standard) or according to request
Voltage/HZ/Phase 380v/50-60hz/3phase
Hydraulic Pump System

The system is driven by a Gear Pump. After filling hydraulic oil into the tank, the pump drives the hydraulic cylinder to execute cutting functions. The system includes hydraulic tank, Gear Pump, hydraulic pipes, and two Solenoid Valves.

Main Item Parameter Detail
Motor 3kw China brand or according to request
Pump China brand or according to request
Solenoid Valve China brand or according to request
Cooling System Cooling fan
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 2
