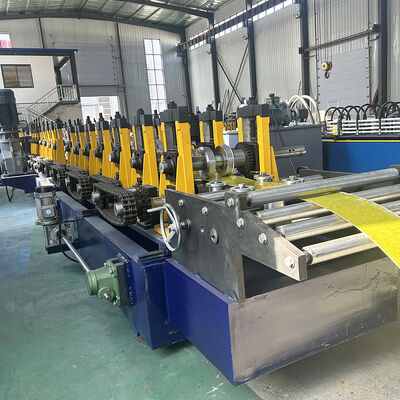

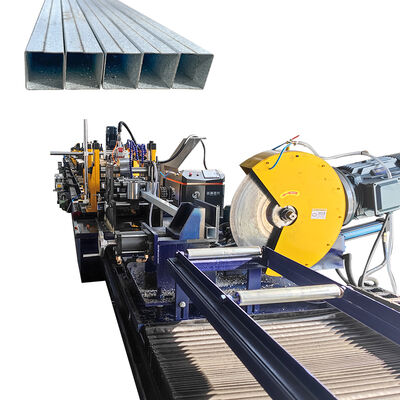

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Large Image :  Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$18000---80000
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Description
Name: High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Certification: CE/ISO9001
Condition: New Dimension(l*w*h): 9600mm*1300mm*1450mm
Voltage: 380V 50Hz 3phases Raw Material: Galvanized Sheet
Highlight:

hydraulic flying cutting roll forming machine

,

high speed laser welding tube machine

,

multi size down spout forming machine

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine 0
Machine Components
Name No. Unit
Decoiler 1 set
Pre slide cutter 1 set
Roll forming machine 1 set
Laser welding machine 1 set
Control box 1 set
Cutter device 1 set
Output table 1 set
Cooling system 1 set
Technical Specifications
No. Specification
1 Suitable Raw Material: Color or galvanised steel plate
2 Width of Raw Material: according to pipe size
3 Thickness of Raw Material: 1-3mm
4 Main Machine Dimensions: 12*0.8*1 meters
5 Motor Power: 7.5KW + 2.2KW
6 Rolling Material: 45# steel (plated with chrome on surface)
7 Rollers Station of Rollformer: 16 sets
8 Production Line Speed: 15-20m/min
9 Diameter of the rollers: Φ70 mm
10 Voltage: 380V 50Hz 3phases
11 Material of the cutting plate: Cr12 mould steel
12 Hydraulic oil: 40#
13 Processing precision: Within 1mm
14 Control system: Mitsubishi PLC with touching screen
Main Technical Parameters
DECOILER
  • Max. Width: 200mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs
  • Control system: manual
ROLL FORMING MACHINE
  • Material Thickness: 0.7-2.0mm GI
  • NO. of roller Stations: 16 stations
  • Material for Rollers: GCR15 steel polished and coated with chrome HRC58-62°
  • Material for shaft: high grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (shanghai brand)
  • Diameter of shaft: 80mm (Solid shaft)
  • Bottom frame: 350*175*8mm H steel
  • Frame panel: Thickness 20mm
  • Driven type: 1.2 inch Chain
  • Speed: about 4-6 m/min
  • Cooling system
  • Lubricate system
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine 1
Laser Welding Machine Specifications
No Name Description
1 Machine cabinet High strength sheet metal structure
2 Electronic control system ZYJC-2022A
3 Fiber optic laser 3kw
4 Controller ZYJC-PLC2022
5 Welding head 3000W Precision Focus Customization
6 Laser chiller ZYJC-3000W
7 Peripheral environment Ventilation, no impact within 5 meters
8 Voltage 380v 50hz 3p
9 Ground Type Direct centralized
For more information, please contact us.
