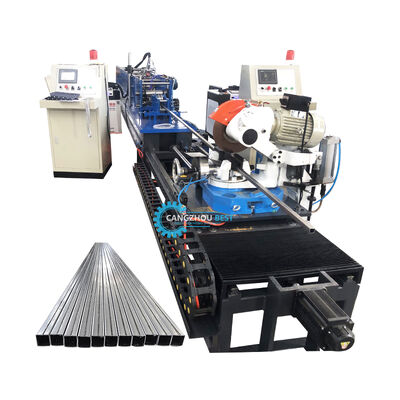

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine
20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine
20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine

Large Image :  20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$18000---80000
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine

Description
Name: Laser Welding Square Tube Making Roll Forming Machine Certification: CE/ISO9001
Condition: New Dimension(l*w*h): 9600mm*1300mm*1450mm
Voltage: 380V 50Hz 3phases Raw Material: Galvanized Sheet
Highlight:

20x20mm steel profile roll forming machine

,

small size square tube welding machine

,

down spout laser welding forming machine

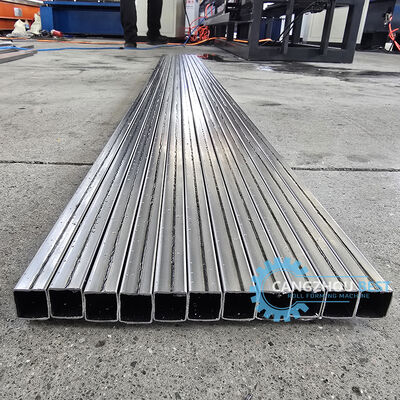

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine
This advanced laser welding square tube making roll forming machine combines precision engineering with automated production capabilities for manufacturing high-quality square steel tubes.
20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 0
Machine Components
Component Name Quantity Unit
Decoiler 1 set
Pre slide cutter 1 set
Roll forming machine 1 set
Laser welding machine 1 set
Control box 1 set
Cutter device 1 set
Output table 1 set
Cooling system 1 set
Technical Specifications
Specification Details
Suitable Raw Material Color or galvanised steel plate
Width of Raw Material According to pipe size
Thickness of Raw Material 1-3mm
Main Machine Dimensions 12*0.8*1 meters
Motor Power 7.5KW + 2.2KW
Rolling Material 45# steel (plated with chrome on surface)
Rollers Station of Rollformer 16 sets
Production Line Speed 15-20m/min
Diameter of the rollers Φ70 mm
Voltage 380V 50Hz 3phases
Material of the cutting plate Cr12 mould steel
Hydraulic oil 40#
Processing precision Within 1mm
Control system Mitsubishi PLC with touching screen
Main Technical Parameters
DECOILER
  • Max. Width: 200mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs
  • Control system: manual
ROLL FORMING MACHINE
  • Material Thickness: 0.7-2.0mm GI
  • NO. of roller Stations: 16 stations
  • Material for Rollers: GCR15 steel polished and coated with chrome HRC58-62°
  • Material for shaft: high grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (shanghai brand)
  • Diameter of shaft: 80mm (Solid shaft)
  • Bottom frame: 350*175*8mm H steel
  • Frame panel: Thickness 20mm
  • Driven type: 1.2 inch Chain
  • Speed: about 4-6 m/min
  • Cooling system
  • Lubricate system

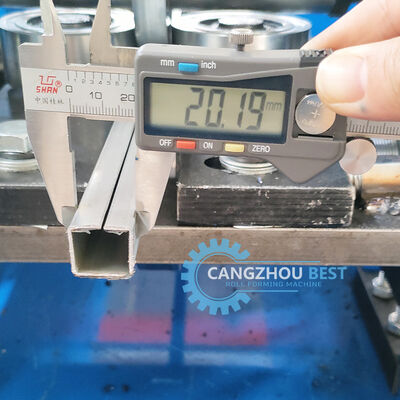

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 1
Laser Welding System Specifications
Component Name Description
1 Machine cabinet High strength sheet metal structure
2 Electronic control system ZYJC-2022A
3 Fiber optic laser 3kw
4 Controller ZYJC-PLC2022
5 Welding head 3000W Precision Focus Customization
6 Laser chiller ZYJC-3000W
7 Peripheral environment Ventilation, no impact within 5 meters
8 Voltage 380v 50hz 3p
9 Ground Type Direct centralized
For more detailed information and technical specifications, please contact our engineering team.

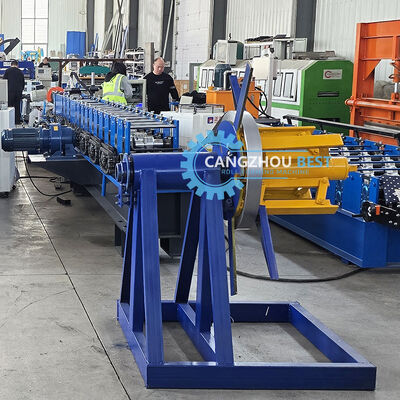

20x20mm Small Size Steel Profile Laser Welding Square Tube Making Roll Forming Machine 2
