Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

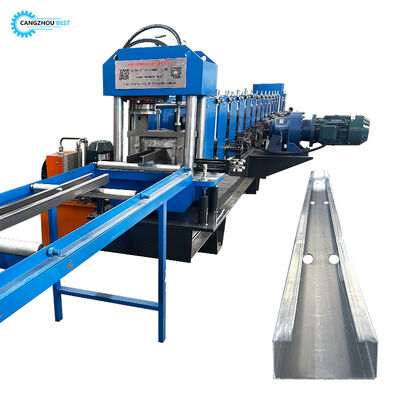

Large Image : Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY100-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Description

Product Name:	Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine	Machine Dimention:	10mx1.8mx1.4m
Driven System:	Chain Or Gear Box	Control System:	PLC
Warranty:	2 Years	Life Time:	More Than 10 Years
Highlight:	black steel c purlin roll forming machine , manual size change purlin machine , auto cutting c purlin former

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Advantage:

One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Machine Component

De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	500mm	600mm
Capacity	5000kgs	5000kgs-8000kgs
Inner diameter	450-550mm	450-550mm
Outter dimater	1500mm	1800mm

roll forming machine

(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

(10) Driven type: 2＂Chain

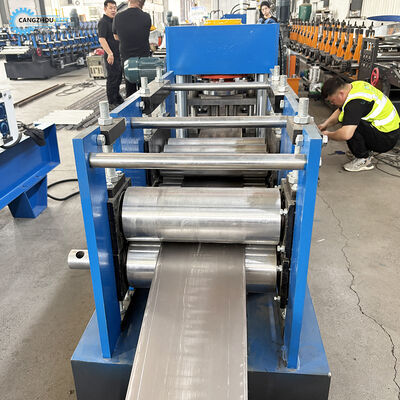

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine 1

Punching device

Item	Parameter detail
Frame processing	the whole levelling surface is made by drilling machine
Mould material	Cr12mov
Mould processing	wire eletrode-cutting for the mould shape, it will save pressure
Hole size	According to your request
Hole number	According to your request
Pressure	20Mpa

Cutting device

Type	Mould cutting
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working	Hydraulic type

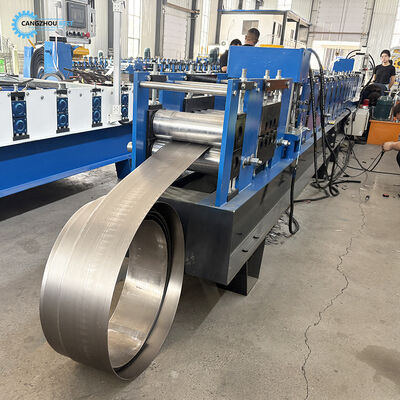

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine 2
Stacker

Type	Manual	Auto(option)
Length	2pieces, length is adjustable	according to your requirement

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan
