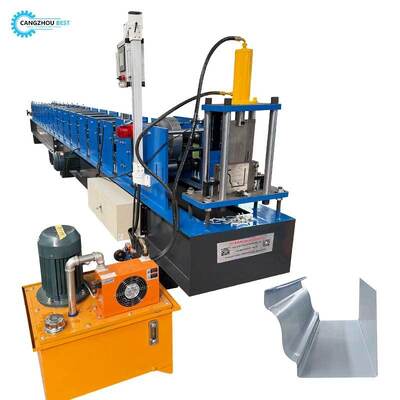

Ghana Popular Color Stee K Gutter Making Roll Forming Machine

Ghana Popular Color Stee K Gutter Making Roll Forming Machine

Ghana Popular Color Stee K Gutter Making Roll Forming Machine Working flow

Decoiler------feeding------roll forming-------cut to length-----output table

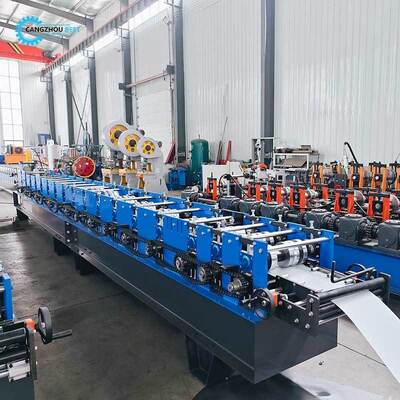

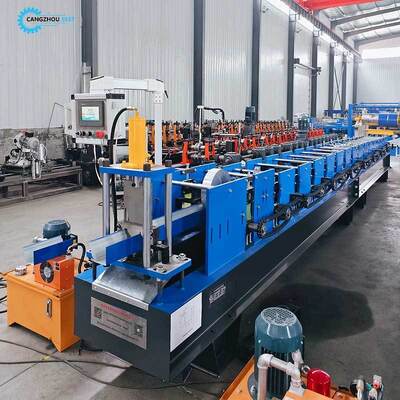

Ghana Popular Color Stee K Gutter Making Roll Forming Machine  Machine Component

Main technical parameter:

1. DECOILER

(1) Max. Width: 500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

(5)Type:manual

2.ROLL FORMING MACHINE
(1)Material Thickness: PPGI and Aluminum0.4-0.8mm

(2)Rollers:15Groups
(3)Material for Rollers:#45 steel polished and coated with chrome HRC55-60°
(4)Material for shaft: high grade No.45 steel after treatment

(5)Diameter of shaft: 70mm

(6)Frame panel thickness: 20mm

(7)Bottom frame: 35# H-section steel
(8)Motor Power: 5.5 kw
(9)Rolling Speed: about 10 m / min

(10)Driven type: 1.0＂Chain

3.CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60℃

(3)Motor: 3kw

(4)Type: hydraulic mould cutting

4. ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

(3)Cooling fan

(4)Oil gauge

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m

Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Ghana Popular Color Stee K Gutter Making Roll Forming Machine Service

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller's factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.
2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4.Warranty: 18 months since install machine
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.

WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2)Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you? A: Yes, we will. The core of our company culture is honesty and credit. Best is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4)Q:What can you do if the machine broken? A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport? A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials? A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil. Hope we could establish win-win business relations in the soon future!
