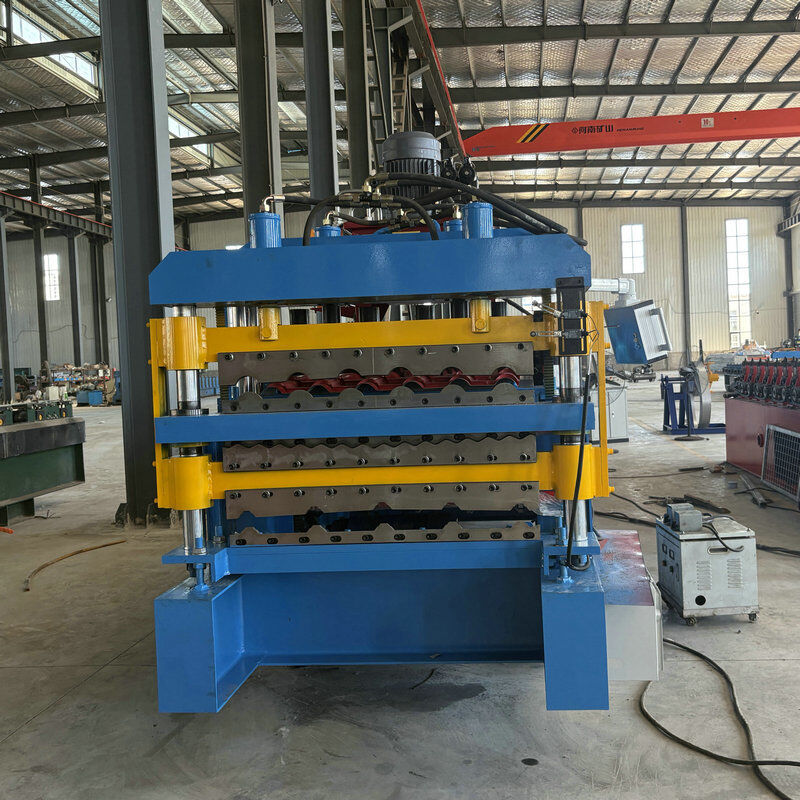

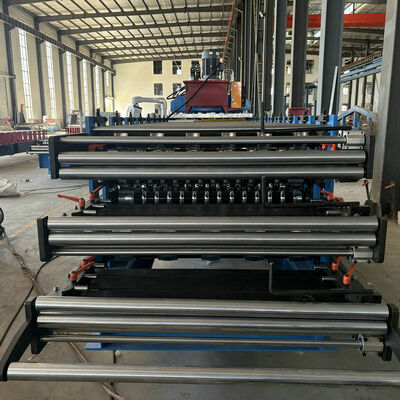

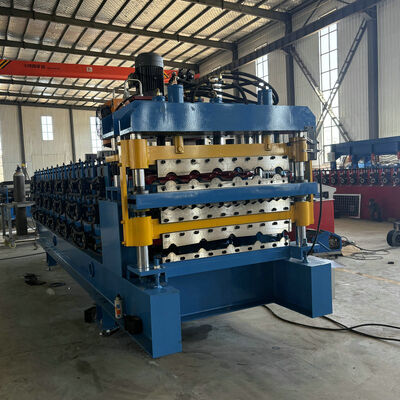

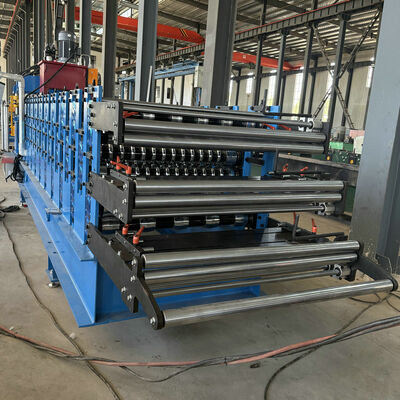

Galavnized Steel Profile Africa Popular Three Layer Roofing Sheet Roll Forming Machine

Large Image : Galavnized Steel Profile Africa Popular Three Layer Roofing Sheet Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6000--40000
Packaging Details:	a.need one 40ft container b.Fit for ocean shipping c.Main body of roll forming machine fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Galavnized Steel Profile Africa Popular Three Layer Roofing Sheet Roll Forming Machine

Description

Tile Type:	Colored Glaze Steel	Voltage:	380V 50Hz 3phases
Condition:	New	Use:	Roof
Roller MaterialRoller Material:	45# Steel	Usage:	Used As Roof Panel In Steel Construction
Roller Material:	45# Steel
Highlight:	galvanized steel roofing sheet machine , three layer roofing roll forming machine , Africa popular roof tile machine

Galavnized Steel Profile Africa Popular Three Layer Roofing Sheet Roll Forming Machine

High Efficiency Production System

This advanced standing seam roll forming machine features 13 rows of roller stations for efficient production of aluminum roofing sheets with precision and reliability.

Three Layer Roofing Sheet Roll Forming Machine Components & Specifications

Uncoiler System
Loading capacity: 5 T
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm

Shearing Mechanism
Automatic PLC-controlled cutting
Blade material: Cr12 quenched
Power supply: Hydraulic system

Hydraulic Station
Hydraulic motor power: 3kw
Hydraulic oil: 46# hydraulic oil

Control System
Languages: English and Chinese
Length tolerance: 3m ±1.5mm
Touch screen with button interface

Three Layer Roofing Sheet Roll Forming Production Line Components

No.	Component	Unit	Quantity
1	Decoiler	set	1
2	Main roll forming machine	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	Automatic cutting	set	1
6	Output table	set	1

Three Layer Roofing Sheet Roll Forming Technical Parameters

Parameter	Specification
Suitable materials	Color steel plate, galvanized sheet, aluminum coils
Feeding material width	1000mm
Roller stations	13 rows
Material thickness	0.3-0.8mm
Production speed	8-12m/min
Roller material	45# steel
Shaft diameter	75mm
Voltage	380V 50Hz 3 phases
Main machine wall thickness	14mm steel plate
Machine body	300mm H steel
Servo motor power	5.5kw
Dimensions	750015001400mm
Weight	Approximately 4.8 tons

Warranty & Support

One year warranty with lifetime technical support
Installation training via video or factory visit
Overseas service available (customer covers travel expenses)

Packaging & Delivery

Delivery time: 40-60 days after advance payment

Packaging: PE film or custom packaging as requested

Suitable for ocean shipping in 1*40GP container
