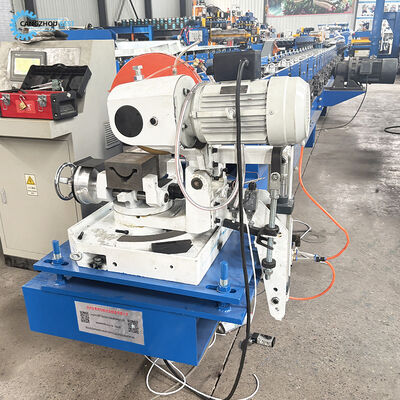

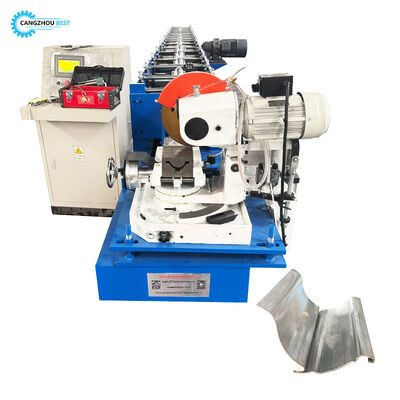

Customized Saw Cutting Stainless Steel Gutter Roll Forming Machine

Customized Saw Cutting Stainless Steel Gutter Roll Forming Machine

Stainless Steel Gutter Roll Forming Machine Application

The roll formed product is more durable than the traditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Stainless Steel Gutter Roll Forming Machine Working flow
Decoiler----feeding----roll forming----cut to length----output table

Stainless Steel Gutter Roll Forming Machine Machine components

Stainless Steel Gutter Roll Forming Machine Technical Data

1). Decoiler
Decoiler Type: Manual decoiler
Manual expanding
Impassive decoiling
Weight capacity:3 Ton

2). Feeding Device
Function: It is used torelease the head of coil and feed into the forming machine.

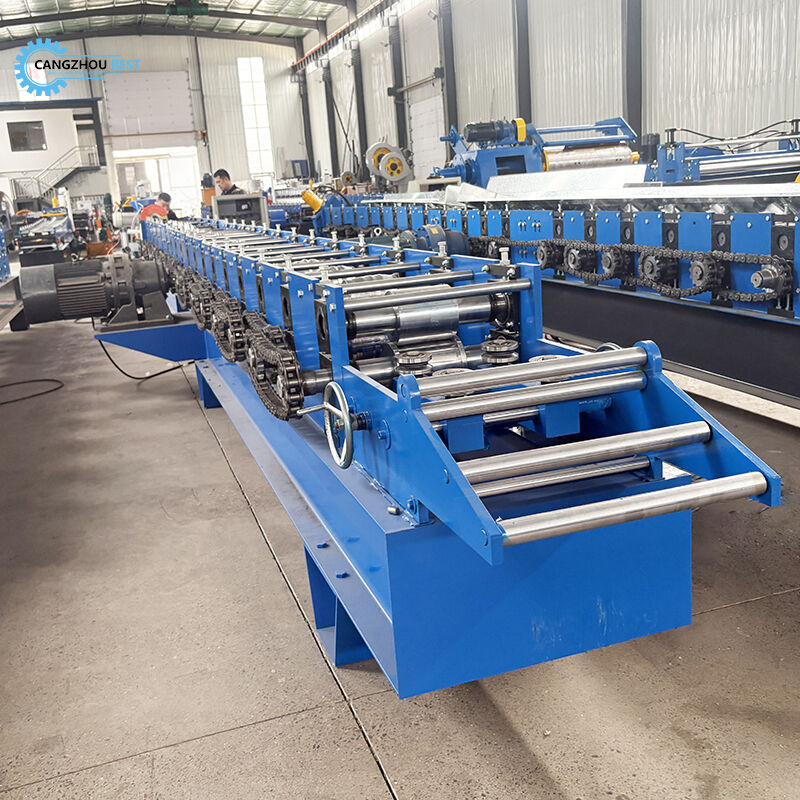

3). Roll Former
Main Principal Axis Diameter: ￠76mm
Forming Roller stand: 15 Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
Forming Speed: 0-15 m/min
Dive Type: Chain of transmission
Chain Material: 45# steel.
Machine Frame stand: Welded structural steel
Machine Base: 36# H shape steel
Thickness of Fame Steel: S18mm

Main Power: 5.5KW

4) Cutting Device & Hydraulic Station
Cutting type: Hydraulic cutting
Hydraulic power: about 4Kw

Hydraulic Blade and cutter material: C r12 Mov, quenching process
Cutting length tolerance: +/- 2mm

5). Electrical System
Voltage: 380V, 3 Phase 50Hz
PLC Electrical control system: Japanese PLC Board
Encoder Frequency Control System: Brand
Touch Screen: Brand
Transducer: ABB
Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)

6). Support Table
Simple Nonpower support table
To support the profile after cutting
