Africa Popular Steel Profile Color Steel PPGI K Gutter Making Roll Forming Machine
K Gutter Making Roll Forming Machine Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
K Gutter Making Roll Forming Machine Working flow
Decoiler----feeding----roll forming----cut to length----output table
K Gutter Making Roll Forming Machine components
| Name |
qty. |
| Decoiler |
1set |
| Roll forming machine |
1set |
| Cutting device |
1set |
| PLC Control system |
1set |
| Oil pump |
1set |
| Output table |
1set |
K Gutter Making Roll Forming Machine Technical Data
1). Decoiler
Decoiler Type: Manual decoiler
Manual expanding
Impassive decoiling
Weight capacity:3 Ton
2). Feeding Device
Function: It is used torelease the head of coil and feed into the forming machine.
3). Roll Former
Main Principal Axis Diameter: ￠76mm
Forming Roller stand: 15 Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
Forming Speed: 0-15 m/min
Dive Type: Chain of transmission
Chain Material: 45# steel.
Machine Frame stand: Welded structural steel
Machine Base: 36# H shape steel
Thickness of Fame Steel: S18mm
Main Power: 5.5KW
4) Cutting Device & Hydraulic Station
Cutting type: Hydraulic cutting
Hydraulic power: about 4Kw
Hydraulic Blade and cutter material: C r12 Mov, quenching process
Cutting length tolerance: +/- 2mm
5). Electrical System
Voltage: 380V, 3 Phase 50Hz
PLC Electrical control system: Japanese PLC Board
Encoder Frequency Control System: Brand
Touch Screen: Brand
Transducer: ABB
Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
6). Support Table
Simple Nonpower support table
To support the profile after cutting
K Gutter Making Roll Forming Machine Re-sale Service :
- Send you invitation letter, if you want to visit our factory and check the machines.
- Good Quality + Competitive price + Quick Response + Reliable Service.
K Gutter Making Roll Forming Machine Selling Service :
- Email the production schedule and make prompt delivery.
- Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
- Be here for your service at any time.
K Gutter Making Roll Forming Machine After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
K Gutter Making Roll Forming Machine RFQ
- Tell us your requirements
- Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
- Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
- Advanced payment and production
- Factory Examine Goods/ rectify and reform to meet the requirements of contract.
- Balance payment and shipping
- Handing Shipping files to help clients get goods from transporter in time.
- Clients get goods and go into warranty time.

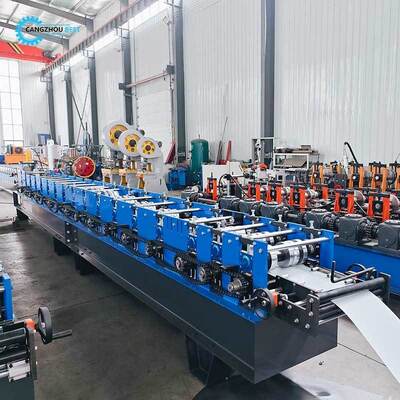

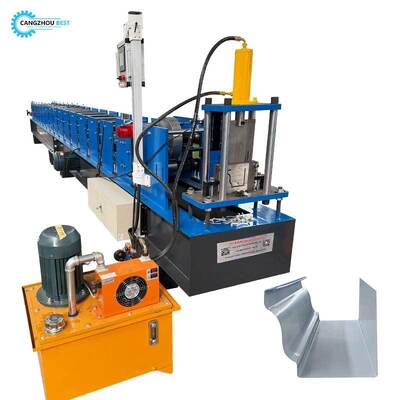

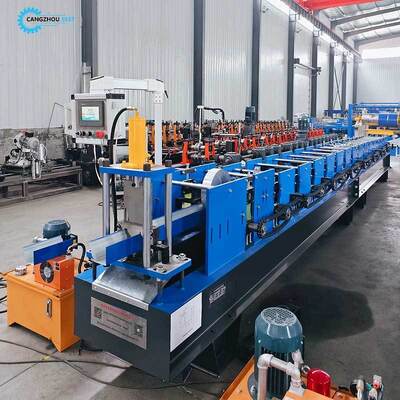

Machine Photos
