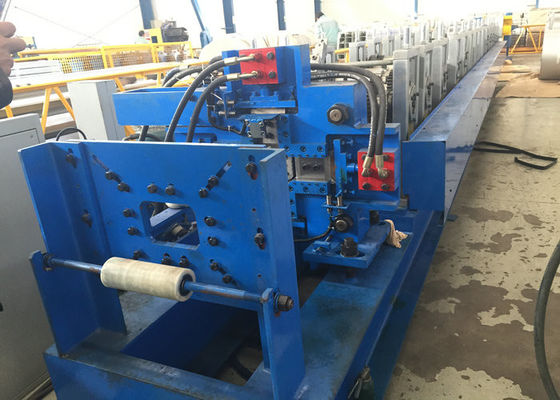

Large Image :  Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY94-130
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15200-$28500/set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention

Description
Product Name: China Alumiumum Down Spout Pipe Roll Forming Machine Manufacturer Color: Blue Or As Your Request
Machine Speed: 8-12m/min Machine Dimention: 9mx1.4mx1.4m
Machine Power: 5.5kw+3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

downspout roll forming machine

,

downpipe roll forming machine

Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention


Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set





Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 16-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting


Type

Mould type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual


 Auto(option)



Length 2 pieces 6m or 12m

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan


Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention 0Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention 1Alumiumum Down Spout Roll Forming Machine Pipe Type 9mx1.4mx1.4m Dimention 2
