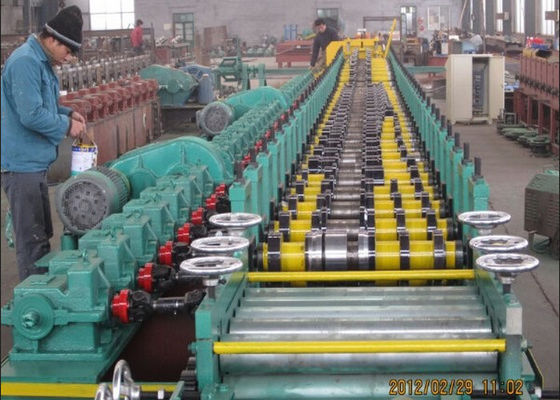

Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention

Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention
Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention

Large Image :  Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY15-860-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+8000+SET
Packaging Details: plastic film for naked machine
Delivery Time: 30-40days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention

Description
Product Name: Galvanized Carriage Board Sheet Roll Forming Machine Manufacturer Color: Blue Or As Your Request
Machine Speed: 8-12m/min Machine Dimention: 8.5mx1.4mx1.4m
Machine Power: 7.5kw+3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

metal roll forming machine

,

cold roll forming machine

Galvanized Carriage Board Sheet Roll Forming Machine 8.5mx1.4mx1.4m Dimention

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm



Cutting


Type

bearing sliding type

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m



Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30 days after receiving advance payment.
Guarantee period: 18months free service/ pay service all the machine life


Installation and training:


① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
