Product Details:
|
| Product Name: | Africa Popular Color Steel Versatile Roll Forming Machine With Good Quality | Material: | PPGI |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Machine Dimention: | 6.5mx1.4mx1.4m |
| Machine Power: | 3kw+4kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

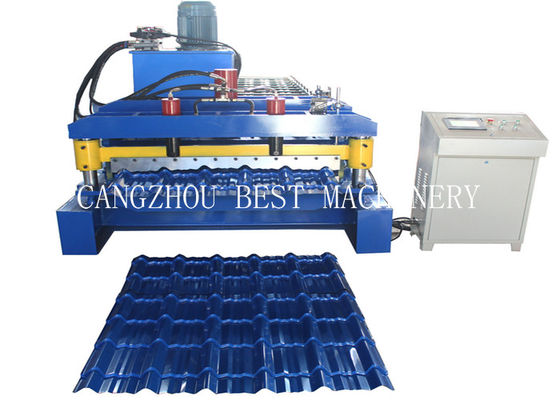

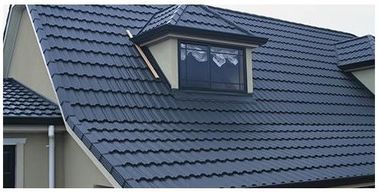

Africa popular Color Steel Versatile Roll Forming Machine with good quality
Working flow
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | |
|
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

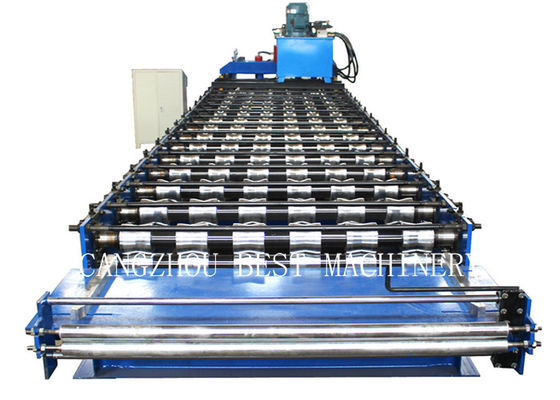

roll forming
(1) Material Thickness: 0.4-0.8mm
(2) Rollers: 22steps
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kw
(9) Driven type: 1.0＂Chain
Pressing and cutting device
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
Photos
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 45 days after receiving down payment
Guarantee period: 18months free service/ pay service all the machine life
