Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Use: | Roof |
| Certification: | CE/ISO9001 | Control System: | PLC(imported Brand) |
| High Light: | panel roll forming machine,cold roll forming machine |
||

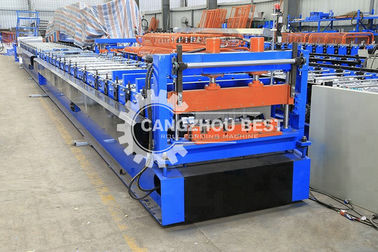

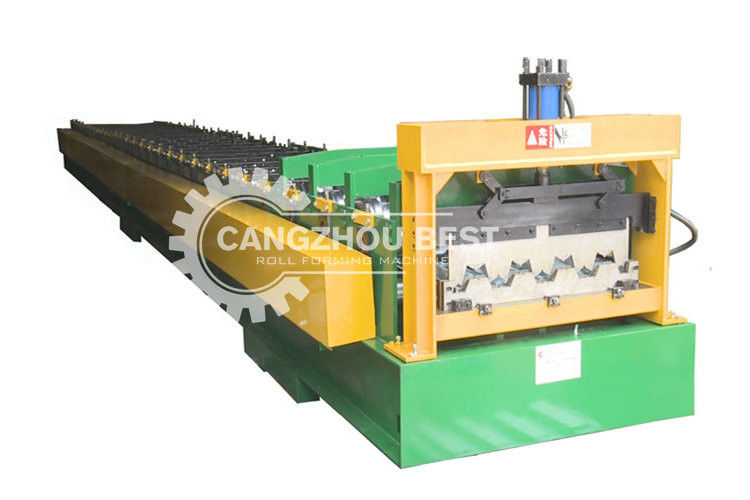

Ce And Iso Passed Floor For 688 Sheet Metal Deck Panel China Roll Forming Machine Manufacturer
Main parameters:
1:Our advantageous:
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 40 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design 6: Free technical support and Freeaccessoies supply.
| Technical parameters: | ||
| 1 | Name of commodity & specification | XN- 720 deck roof machine with high quality low price |
| 2 | Main motor power | 11kw, 3 phase |
| 3 | Hydraulic motor power | 5.5kw |
| 4 | Hydraulic Pressure | 18-20MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 450mm H-Beam |
| 8 | Backboard Thickness | 22mm |
| 9 | Chain Size | 66mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.3-0.8mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 720mm |
| 14 | Productivity | 8-10m/min |
| 15 | Roll Station | 27 |
| 16 | Roller Diameter | 95mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 15000×1200×1100mm |
| 21 | Total Weight | 19T |
| 22 | Components |
Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
| 23 | Workflow |
Manual decoiling----feeding and guiding---- roll forming----cut to length----run out table |
| 24 | Package | nude in the container |
| 25 | Minimum order quantity | 1 set |
| 26 | Payment terms |
T/T(30% T/T pay in advance, the remaining 70% pay before ship) |
| 27 | Delivery time | 30 working days later after receiving the deposit |
| All technical parameters can be changed, according to user's need. | ||
(2).Main Techincal Data:
| 1. | Model Number | YX75-900 |
| 2. | Size | 16000*1800*1500mm |
| 3. | Weight | 20000KGS |
| 4. | Motor Power | 22KW |
| 5. | Hydraulic Power | 37KW |
| 6. | Material of principal axis | high grade 45# fogred steel |
| 7. | Voltage | 220V/60HZ/3PH |
| 8. | Forming Steps | 28steps |
| 9. | Processing Speed | 8-14m/min |
| 10. | Thickness | 0.8-1.5mm |
| 11. | Feeding Material Width | 1218mm |
| 12. | Effective Width | 900mm |
| 13. | Height of Roofing | 75mm |
(3). Main Accessories:
| 1 | Main Forming Machines |
| 2 | 5 Tons Manual Uncoiler |
| 3 | Hydraulic System |
| 4 | PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching screen, cencorder and frequency changer) |

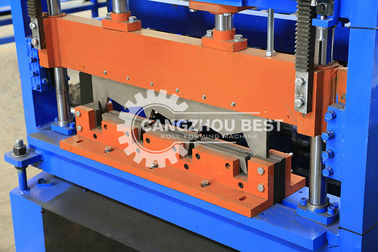

| 5 | Hydraulic Forming Cutter |
| 6 | Tools |
| 7 | Operation Manual |
