Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Tile Type: | Colored Glaze Steel |
| Certification: | CE/ISO9001 | Warranty: | 2 Year |
| High Light: | panel roll forming machine,cold roll forming machine |
||
Technical Specifications
| Raw material | galvanized steel coils, GI strip rolls |
| Thickness of raw material | 0.8-1.2mm |
| Width of raw material | 1200mm |
| Electric control system | Mitsubishi PLC |
| Uncoiler system | 5 tons Manual Operation or auto one ( Max. 1250mm width) |
| Production line speed | around 900 meters per hour |
| Rolling stations | around 34 sets |
| Roller material | No. 45 steel coated with chrome |
| Shaft and the diameter of axle | No. 45 steel with quenching treatment, 72 diameters |
| Main motor power | 11kw x 2 |
| Hydraulic motor power | 5.5kw |
| Hydraulic pressure | 12Mpa |
| Scissor material | Cr12 mould steel, HRC 58-62°C |
| Length tolerance | ±1.5mm |
| Voltage | 380V, 50HZ,3 phase or customized |
| Driving method | Chains |
| Colors | Yellow and blue (customized) |
| Size | 16 x 1.6 x 1.6 meters |
| Weight | about 18 tons |
| Package | Nude package in 1*40GP container and 1 * 20GP container |
| Delivery time | 80 working days |
| Payment Method | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
Working Flow of Steel Floor Deck Panels Production Line
Decoiling---Sheet Guilding---Automatic Roll Forming---Hydraulic Cutting---Finished Floor Decks on Tables
Technical Parameters of Galvanised Steel Floor Deck Rollformer Machine
| Manual Decoiler | Inner Diameter | 508mm |
| Outer Diameter | 1200mm | |
| Coil Width | Max. 1250mm | |
| Capacity | 5 or 10 tons |

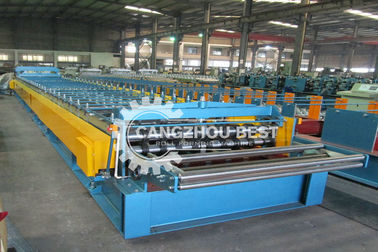

Rollformer System |
Raw Materail | Galvanized Steel Coils |
| Thickness | 0.8-1.2mm | |
| Shaft Material | No. 45 Steel | |
| Shaft Diameter | 85mm | |
| Roller Material | No. 45 steel coated with chrome | |
| Transmission | By Chains | |
| Forming Steps | 35 Steps | |
| Forming Speed | 10-15m/min | |
| Motor Power | 11kw x 2 | |
| Voltage | 380V/50HZ/3Phase |

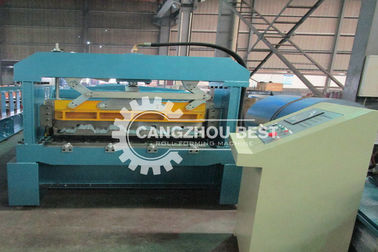

Automatic Cutting System |
Type of Cutting | Hydraulic |
| Cutter Material | Cr12 mould steel | |
| Hydraulin Power | 5.5kw | |
| Cutting Length | Automatic by PLC |
Electric Control System |
Control | PLC |
| Language | English and Chinese | |
| Brand | Mitsubishi from Japan | |
| Function | Automatic cut into length for the desired quantity. |
Main Components of the Steel Floor Deck Roll Former Machine
| Passive mechanical uncoiler | 1 pc |
| Sheet guiding equipment | 1 set |
| Roll forming equipment | 1 set |
| Embossing equipment | 1 set |
| Post-cutting equipment | 1 set |
| Hydraulic station | 1 pc |
| Electric PLC control box | 1 pc |
| Supporting tables | 2 pcs |
