Product Details:
|
Usage: | Steel Construction | Cutting Blade Material: | Cr 12 High Grade Steel |
---|---|---|---|
Control System: | Taiwan Delta | Cutting Type: | Hydraulic Cutting |
Color: | Client's Request | Feature: | High Speed Production |
High Light: | downspout roll forming machine,downspout machine,rain cold roll forming |
Aluminium Water Downspout Roll Forming Machine 60M / Min Rain Gutter equipment
Product Description
Summary of gutter roll forming machine
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 10 + years experience ;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min ;
5). Very easy to install and operate the roll forming machine.
Machine Technical Specifications of gutter roll forming machine:
About raw material and product for roll forming machine
Material &product | Feeding width | according to profile |
Effective width | according to profile | |
Raw material | aluminium coil or color coated coil | |
Thickness | 0.3-0.7 mm | |
Yield strength |
280-350 MPA |
How to load the material??→Decoiler
Manual decoiler | Inner diameter:450-550mm | Expand by band |
Outer diameter:1500mm | ||
Max Coil width :300mm | ||
Capacity: 1.5T | ||
Decoiler dimension:1.5 *1.5*1.5m | ||
Decoiler weight:355KGS | ||
Quantity: 1set | ||
Usage: It is used to support the steel coil and uncoil it in a turntable way. |
Main Forming machine | Forming steps | 15 steps |
Shaft diameter | 70mm | |
Machine stand | Welded Middle Plate | |
Machine frame | 300 H Steel welded | |
roller material | 45# steel | |
shaft material | 45# steel with quenching and tempering | |
Work speed | 10---15m/min | |
Transport | By chain | |
Power of main machine | 5.5kw | |
Voltage | 380V-50HZ-3P(as required) | |
Machine dimension | 7.5*0.8*1.5m | |
Machine weight | About 3.5T | |
Machine color | Yellow and blue(as required) | |
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |

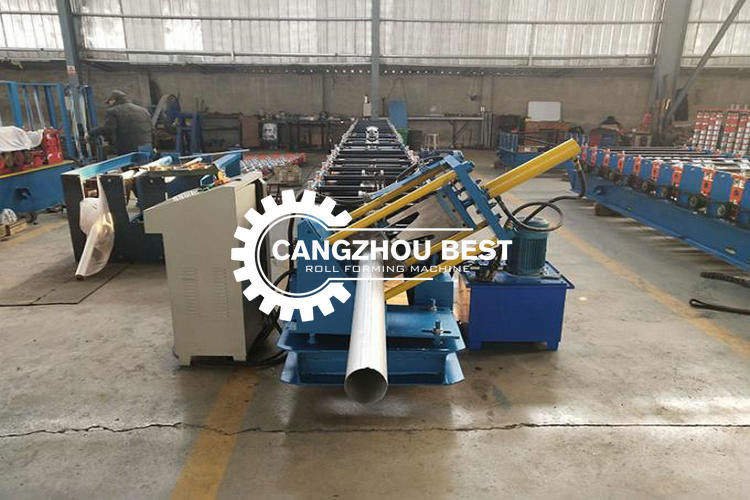

machine diaplay
