Product Details:
|
| Name: | Steel Decking Sheet Profile Roofing Panel Making Roll Forming Machine | Condition: | New |
|---|---|---|---|
| Color: | Client's Request | Production Capacity: | 6-8m/min |
| Control System: | PLC Box | Place Of Orgin:: | Hebei,China |
| Key Selling Points: | High-accuracy | Weight: | 11t |
| High Light: | plc floor deck roll forming machine,fast floor deck roll forming machine,plc deck floor roll forming machine |
||

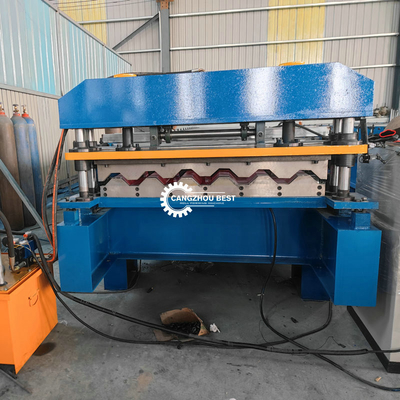

Steel Decking Sheet Profile Roofing Panel Making Roll Forming Machine
1. Product profile:
The steel plate floor tile decking sheet roll forming machine is more and more requested from the customers.
As the manufacturer, we have rich experience to produce this machine and can provide some design concepts to match various demands.
2. Direction for use
Galvanized floor decking sheet roll forming machine:
1. Put all necessary parts on the right location,make the ground falttening.
2. Connect electric wires,use 6-8 mm² support line and keep grounding.
3. Fill hydraulic oil in the pump.not too full,three quarters are ok.
4. Feed raw materil into the machine slowly,make it run smoothly then automatic. 5.Pay attention to final sheet collection,do not scretch it or hurts people.
3.Draft Specification
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.8-1.2 mm | |
| Machine | Roller station | 20 or depend on customer' drawing |
| Shaft diameter | 95 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | GCr 15 | |
| Machine size | About 15×2×1.3 m | |
| Machine weight | About 15 ton | |
| Machine color | As customer' request | |
| Working speed | 8-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 2 inch |
| Main power | 11 kw * 2 | |
| Pump power | 4 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 5 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
4.Main Description
Passive Decoiler
1. Bearing capacity: 5 tonne
2. Coil inner diameter: 478-538mm
3. Max coil width: 1200mm

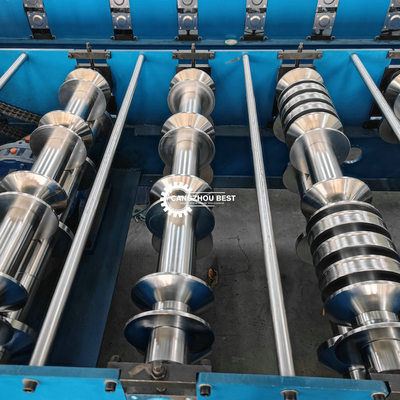

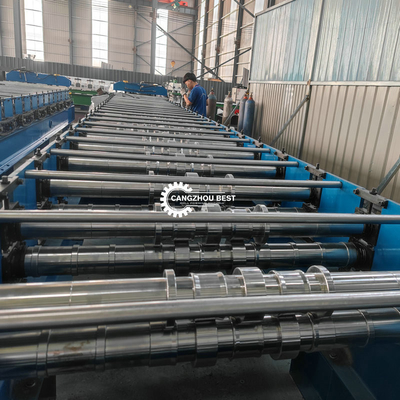

Roll Forming Machine
1. Forming rollers: 28 groups
2. Shafts: Diameter 85mm, 45# forge steel with termal fining
Hydraulic Cutting
1. Cutter blade: Cr12 with vacuum quenching (HRC 58-62)

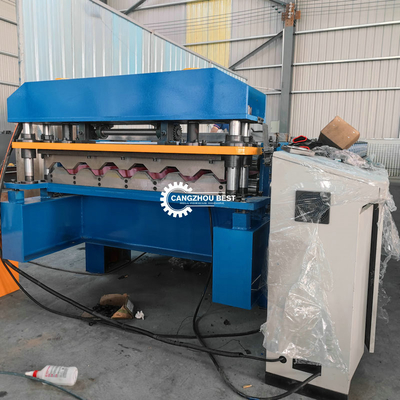

PLC Control Cabinet
Panasonic PLC, Yaskawa VFD, Omron encoder
Our Service:
- Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week
- Give technical suggestion
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
