Product Details:
|
| Product Name: | Automatically C Z U Channel Machine C Purlin Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Machine Dimention: | 7.5mx1.8mx1.4m |
| Machine Power: | 11kw+5.5kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | channel roll forming machine,steel frame roll forming machine,Chain Purlin Roll Forming |
||
Automatically Z U Channel Purlin Roll Forming Machine Chain or gear box Driven system
Advantage:One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

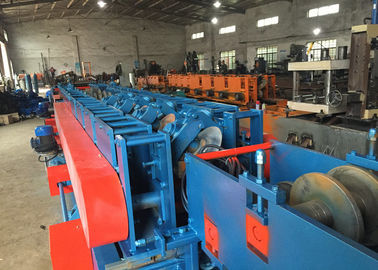

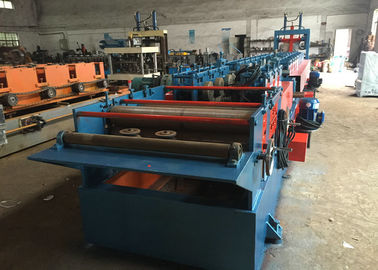

roll forming machine
| Item | Parameter detail | ||||||
| Processing Material | GI and Black Coils | ||||||
| Material thickness | 1-3mm(standard), 3-5mm(customized) | ||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
| Machine siding panel |
|
||||||
| Forming stations | 15 stations (according to the material thickness) | ||||||
| Machine rollers |
high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm |
||||||
| Machine Shaft | φ80-90mm high garde No.45 steel after treatment, | ||||||
| Machine spacers | CNC lathing in high-precision and wire-electrode cutting | ||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||
| Driving system | 2 inch chain or gear box(option) | ||||||
| Machine power | 7.5kw-22kw(according to the size and thickness) | ||||||
| Machine working speed | without punching:8-12m/min or 10-30m/min(option) | ||||||
| Machine testing method | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Punching device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |

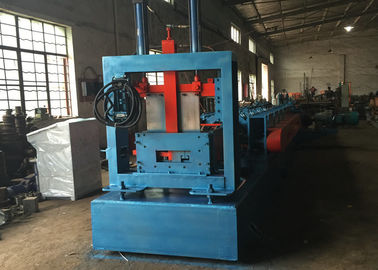

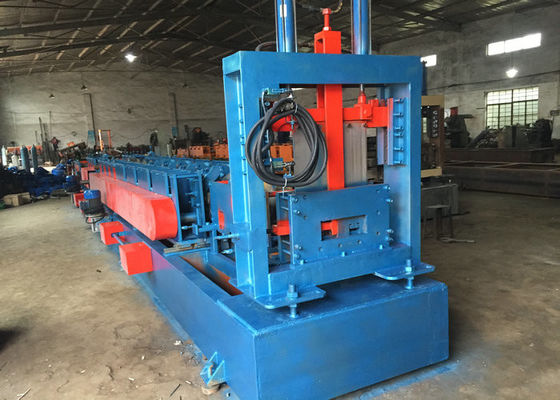

Cutting device
| Type |
Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
