Product Details:
|
| Product Name: | Auto Cutting 1025 Decking Floor Sheet Roll Forming Machine PLC Control System | Machine Dimention: | 11.5mx1.4mx1.4m |
|---|---|---|---|
| Machine Power: | 7.5kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | ||
| High Light: | panel roll forming machine,sheet roll forming machine |
||

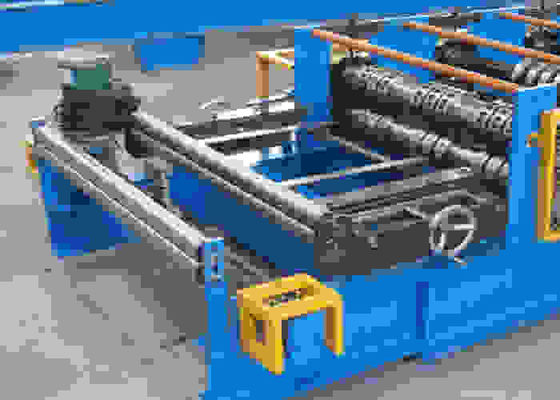

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Working flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Decoiler
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg
roll forming
Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.6-1.5mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 20-38 stations(according to the profiles) | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ90mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 2 inch chain or gear box(option) | ||||||||
| Machine power | 22kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
