Product Details:
|
| Product Name: | 2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Dimention: | 11mx2mx1.5m | Machine Power: | 30kw+15kw |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | highway guardrail forming machine,guardrail roll forming machine |
||

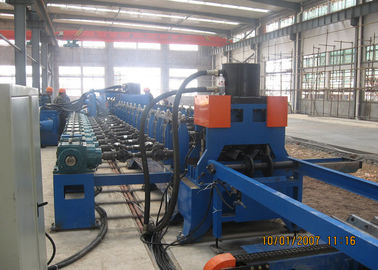

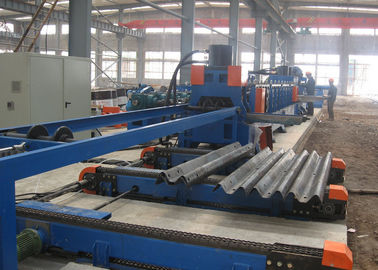

2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 600mm | 800mm |
| Capacity | 5000kgs | 5000kgs-15000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

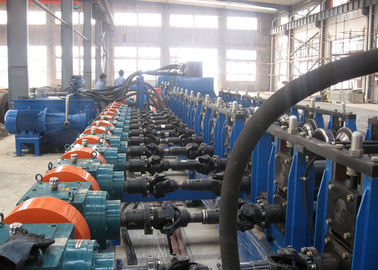

roll forming machine
(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness: 2-3 mm
(3) Rollers: 18 Groups
(4) Material for Rollers: GCr15 steel after treating
(5) Material for shaft: GCr15 steel after treating
(6) Hardness for Heat Treatment: HRC55 – 60
(7) Diameter of shaft: 80mm
(8) Frame panel thickness: 20mm
(9) Bottom frame: 36# H-section steel
(10) Motor Power: 15 kw
(11) Driven type: 2.0＇＇ chain
Punching device
| Item | Parameter detail |
| Photo |  |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type |
Bearing Type cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q:What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
