Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line

Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line
Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line

Large Image :  Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY28-207-1035
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line

Description
Product Name: Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line Warranty: 2 Years
Machine Speed: 4-6m/min Material Thickness: 0.3-0.8mm
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic
High Light:

roof panel roll forming machine

,

steel roof tile forming machine



Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line



Colorful stone coated metal roof tile is a modern environmentally friendly roofing material with

the basic of 0.4mm Al-zin coated steel.

Covering color vermiculite surface which carried under the high temperature technology.

It is high-performance, stable, energy-efficient and easy operation.



Parameter



Sand blasting (the stone coated)

It is including five main parts:

1 Auto bottom glue spraying section

2 Auto stone coated section

3 The first time drying section

4 Auto face glue spraying section

5 The second time drying section



Detail Introduction:



NO. 1 Auto bottom glue spraying section
Appearance size 4000*1000*2000mm
Driving section 3KW Excitation motor or frequency speed regulation (AS per customers’ requirements )
Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor Servo motor ; Power: 750w ; PLC
Automatic spray gun 4 set (spare parts)
Dust collecting fan 1 set ; Power: 200w
Damp proof lamp 1 pc ; Power: 100w
Conveying device Chain reciprocating
Air compressor 1 set ; Power: 7.5kw
Dust control of axial flow fan 1 set ; Power: 200w
Agitator 1 set ; Power: 1.5kw



NO. 2 Auto stone coated section
Appearance size 3500*1000*1500mm
Framework Steel welding
Conveying device Chain reciprocating
Automatic sand hopper 1 set ; Capability: 200kg
Bucket lift 1 set
Manual sandblast gun 4 sets



NO. 3 The first time drying section
Appearance size 25000*1000*1200mm
Framework Steel welding
Frame type thermal insulation wall 1.2mm cold steel with Rock wool
Automatic temperature controller 4 sets ; Range: 0°~160°
Infrared heating tube 30pcs ; Power: 30kw
Conveying device Chain reciprocating
Air cooling device 1 set ; Power: 200w



NO. 4 Auto face glue spraying section
Appearance size 3000*1000*2000mm
Framework Steel welding
Damp proof lamp 1 pc ; Power:100w
Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Conveying device Chain reciprocating
Automatic spray gun 4 sets (spare parts)
Manual patch glue gun 4 sets
Dust control of axial flow fan 1 set ; Power: 200w
Automatic glue machine motor Servo motor ; Power: 750w





NO. 5 The second time drying section
Appearance size 30000*1000*1200mm
Framework Steel welding
Frame type thermal insulation wall 1.2mm cold steel with Rock wool
Automatic temperature controller 4 sets ; Range: 0°~160°
Infrared heating tube 30pcs ; Power: 30kw
Conveying device Chain reciprocating
Air cooling device 1 set ; Power: 200w



This line is 80M long. So we need the workshop length is about 90M.

And also need one of 2*3 air compressor room.



Contact Information:

Abby Song

WhatsApp/Wechat:0086-18701854523

Email:Sales2@chbestmachine.com



Photos

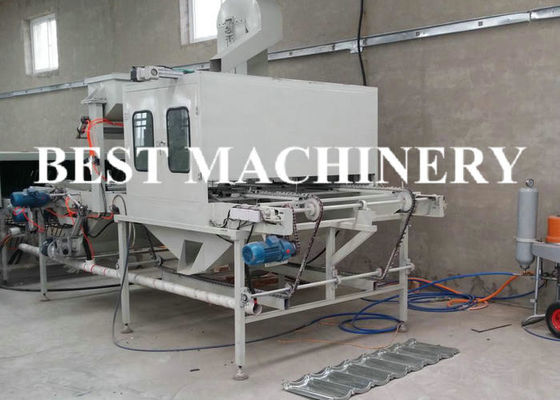

Colored Stone Chip Coated Roof Tile Roll Forming Machine Production Line 0
