Product Details:
|
| Product Name: | Trapezoid Roofing Tile Roll Forming Machine YX1100 Russian Type | Material: | PPGI |
|---|---|---|---|
| Bottom Frame: | 360H Steel | Machine Dimention: | 6.5mx1.4mx1.4m |
| Machine Power: | 3kw+4kw | Driven System: | Chain Or Gear Box |
| High Light: | roof panel roll forming machine,steel roof tile forming machine,trapezoid cold roll forming |
||

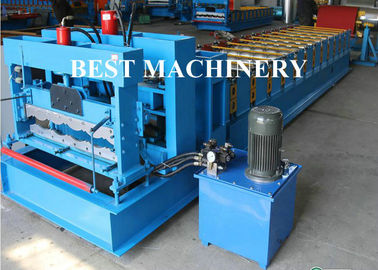

Trapezoid Roof Tile Roll Forming Machine YX1100 Russian Type PPGI Material
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Parameter
1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

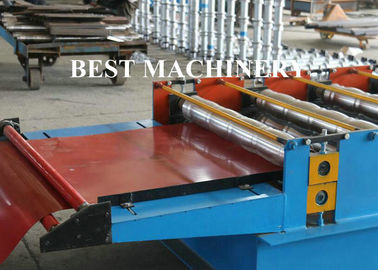

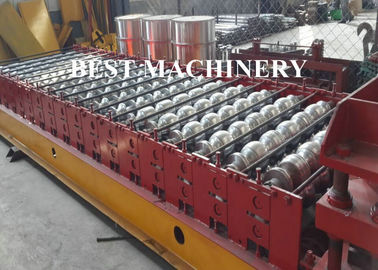

2.ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm
(2) Rollers:13groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
8) Motor Power: 7.5kw
(9) Driven type: 2.0＂Chain

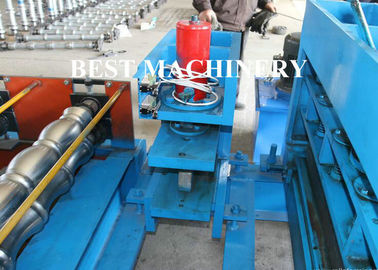

3. PRESSING AND CUT-OFF DEVICE
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Power:4kw
Pressing die material: Cr12 steel
4.ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Length Error: ±2mm
(4) Language: English and Chinese
(5) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Control box Oil pump
5. PRODUCTION SUPPORT TABLE
(1) No power type
(2) Length: 2m
6. Spare part
Chain x1; Bearing x 1; limit switch x1
| Working conditions | |
| 1. working size | 30mx 5m |
| 2. Power supply | 26kw |
| 3. Frequency | 50-60HZ |
| 4. Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7. Lift device | 3-5t forklift or crane |
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications,using top brand components.
What will you do if the machine is broken?
A4: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Can you be responsible for transport?
A5: Yes,please tell me the destination port or address.we have rich experience in transporting.
How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 h), then we can pick up you.
Photos
