|Product Name:||Automatic Roller Shutter Door Frame Sheet Profile Cold Roll Forming Machine||Roller Material:||Gcr15|
|Control System:||PLC||Cutting Type:||Hydraulic|
rolling door roll forming machine,
steel door frame roll forming machine

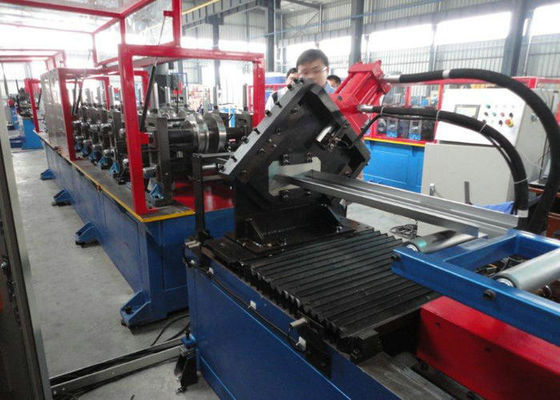

Automatic roller Door Frame Roll Forming Machine , sheet profile cold roll forming machine
Decoiler---------leveling--------punching with servo feeding---------roll forming--------cut to length----------output table
|2||Feeding and guiding device||1set|
|3||Roll forming machine||1set|
|4||Punching machine with servo feeding||1set|
|5||Hydraulic cutting device||1set|
|6||PLC control box||1set|
A Manual decoiler
(1) Inner Diameter: Φ450 – Φ550 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 3000 kg
B. Main roll forming
(1) Material Thickness: 1.5-2.0 mm
(2) Rollers: 18Groups
(3) Material for Rollers: Gcr15 steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 80mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11 kw
(9) Driven type: 2＂Chain
C Cutting device
1) Cutting: Hydraulic cutting
2) Auto cutting when reach the set length.
3) Hydraulic power: 7.5KW
4) Blade material: Cr12,quenched 55°-60°
5) Working pressure:16mpa
6) Cutting tolerance: +/- 1.5mm
1) Hydraulic punching AFTER roll forming
E Control system
|PLC||PLC Frequency Control System with touch screen|
Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: Are you a factory or trading company ?
A: We are a factory?
Q: Where is your factory located?
A: Our factory is located in Botou City,Hebei Province, China. All our clients, from home or abroad, are warmly welcome to visit us !
Q: How do you guarantee the quality of the products?
A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory
Every one of our products have strict testing procedures, must be 100% quality assurance.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
3. Good aftersales-service, its free of charge during the warranty period.
