Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber

Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber
Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber
Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber

Large Image :  Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY410
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber

Description
Product Name: Metal Roof Profile Camber Ridge Cap Roof Tile Roll Forming Machine Machine Speed: 8-12m/min
Machine Power: 3kw+3kw Lifetime: More Than 10 Years
Cutting Type: Hydraulic Pressing Type: Hydraulic
High Light:

ridge cap forming machine

,

steel roof tile forming machine



Metal Roof Profile Camber Ridge Cap Roof Tile Roll Forming Machine





Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Pressing and Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Parameter


Metal ridge cap machine Parameters:



 NO Name Specification
1. Decoiler Weight capacity PPGI steel
Coil Width 305mm
Inner Diameter 470-530mm
2. Film covering Width 305mm
3. Forming Machine Roller station 14Rows
Diameter of shaft 70mm
Material of rollers 45#Steel
Technology of rollers Quench to increase the hardness
Surface of rollers Plate hard Chrome 0.05mm
Main bearing 6210 /bearing steel
Frame 300MmC-Beam
Middle plate thickness 16mm
Chain 1inch





4.





Cut Off

Operation Automatic hydraulic type
Material of blade CR12 steel
Oil pressure station Motor,oil pump,electromagnetic valve etc.
Motor of oil pressure station 3KW
Working pressure 0-14MPA



5



Automatic stacker



Size 6Meters
Type Automatic Side Roll-out
Main motor 5.5KW
voltage 480V 60HZ



6.



Electric Box

With touch screen

Data input imperial system (inches and decimals)
PLC control system Delta Brand
Frequency converter Delta Brand
Counter Omron
7. Language English
8. Length of line 10Meters
9. Speed

4M/Minute





ELECTRONIC CONTROL SYSTEM



(1)Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Deta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Photos

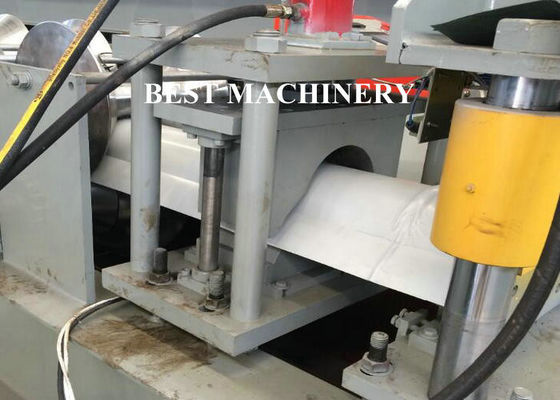

Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber 0

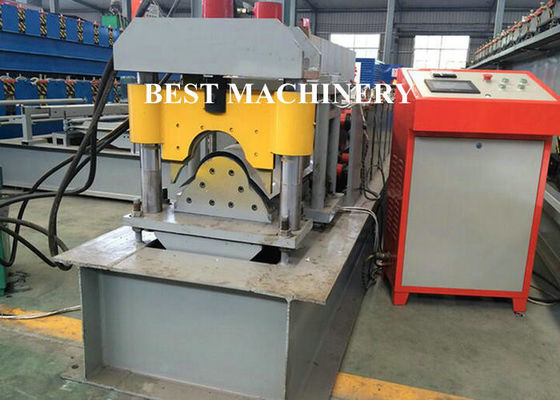

Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber 1



Ridge Cap Roof Tile Roll Forming Machine / Metal Roof Profile Camber 2



Installion


① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
