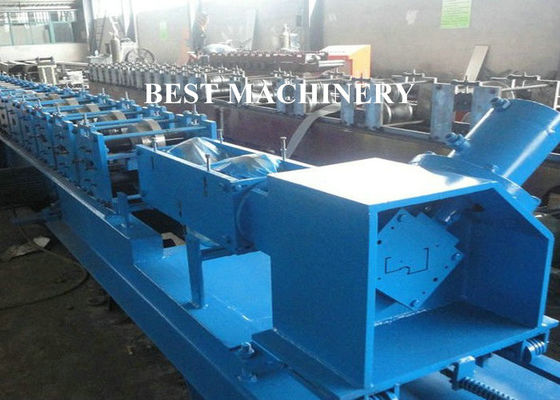

Full Auto Steel Profile Frame Roll Forming Machine Hydraulic Punching

Description
Product Name: Full Auto Steel Profile Door Frame Roll Forming Machine Hydraulic Punching Color: Blue Or According To Your Request
Warranty: 2years Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

concrete door window frame making machine

,

rolling door roll forming machine



Full Auto Steel Profile Frame Roll Forming Machine Hydraulic Punching





Working flow


Decoiler---------leveling--------punching---------roll forming--------cut to length----------output table



Machine components:



No. Name Qty.
1 Decoiler  1set
2 Feeding and guiding device 1set
3 Roll forming machine  1set
4 Punching machine with servo feeding  1set
5 Hydraulic cutting device  1set
6 PLC control box  1set
7 output table 1set


Techincal description:



A Manual decoiler



(1) Inner Diameter: Φ450 – Φ550 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 3000 kg



B. Main roll forming



1) Material of frame : (high grade) 360mm H shape steel welding
2) Thickness of middle plate : 20mm
3) Step of forming roller : 18steps
4) Diameter of shaft (solid shaft): 80mm
5) Material of shaft (solid shaft): (high grade) 45# Steel
6) Drive type of roll forming machine : drive by chain
7) Chain : 38.1 mm (high grade)
8) Bearing : 6312 (high grade)
9) Reducer : 8# cycloid reducer (high grade)
10) Power of main motor : 11KW
11) Voltage : 380V/50Hz/3phase
12) Feeding width : 245mm-385mm
13) Suitable coil thickness : accepted thickness for steel coil is 1.6mm-2.0mm.



C Cutting device



1) Cutting: Hydraulic cutting

2) Auto cutting when reach the set length.

3) Hydraulic power: 7.5KW

4) Blade material: Cr12,quenched 55°-60°

5) Working pressure:16mpa

6) Cutting tolerance: +/- 1.5mm



D Punching



1) Hydraulic punching AFTER roll forming

2) Power:7.5kw



E Control system



PLC PLC Frequency Control System with touch screen
PLC Brand Delta
Encoder Brand Omron
Length error ±2mm
Transducer

Panasonic



RFQ



Q: Can you make the machine according to my design or proto type?


A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us



Q: Are you a factory or trading company ?



A: We are a factory?



Q: Where is your factory located?



A: Our factory is located in Botou City,Hebei Province, China. All our clients, from home or abroad, are warmly welcome to visit us !



Q: How do you guarantee the quality of the products?



A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory



Every one of our products have strict testing procedures, must be 100% quality assurance.



Q: How can we be assured that you will deliver us quality machine with spare parts?


A: 1. Customers to send the technical people to our factory for checking the quality.



2. We can send the technicians to the buyer`s factory for the installation of the machine.



3. Good aftersales-service, its free of charge during the warranty period.
