Product Details:
|
| Name: | Light Steel Keel Drywall Ceiling Angle Making Roll Forming Machine | High Speed: | 20-30m/min |
|---|---|---|---|
| Warranty: | 2 Year | Color: | As Your Requires |
| Weight: | 3t | Voltage: | 380V/50HZ/PHASE |
| High Light: | steel stud roll forming machine,profile roll forming machine |
||

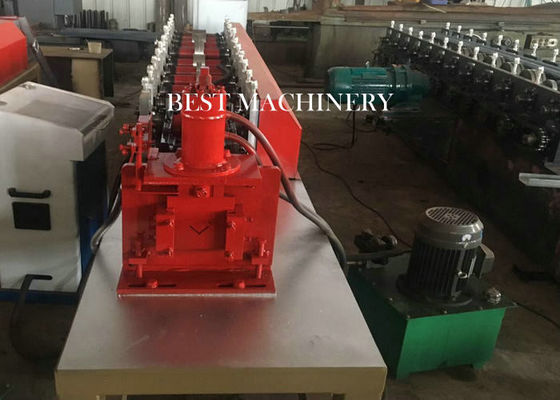

Light Steel Keel Drywall Ceiling Angle Making Roll Forming Machine
Machine Components
Decoiler-------------------------1set
Roll Forming Machine------1set
Cutting Device---------------1set
Hydraulic Pump--------------1set
Control System--------------1set
Output Table------------------1set
Working Flow
Decoiler--Feeding--Roll Forming--Cutitng--Output Table
Machine Parameter
| Material specification | Galvanized and pre-painted galvanized steel. |
| Hydraulic station power | 3 kw. |
| Feeding width | 124mm. |
| Cover width | 70mm. |
| Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 8-12 m/minute. |
| Voltage | As per customer’s request. |
| Numbers of stands | 10 stands/stations/pairs. |
| Roller material |
Cr 12 steel polished and coated with chrome HRC58-62° |
| Shaft diameter | 60mm |
| Shaft diameter | high grade No.45 steel after treatment |
| Type of cutting | Roll-formed and length-set profile cutting. |
Decoiler
Max. Width: 500mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Hydraulic Or Manual (Optional)
Roll Forming Machie
Power: 3kw
Frame panel: guide pillar
Bottom Frame: 360H steel
Thickness: 0.5-1.2mm
Cutting Device
Driven: 1 inch chain
Cutitng Blade: Cr12 steel
Hardness for Heat Treatment:HRC58 – 62°
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Output Table
Length: 6m
It is simple and used to load finished product.
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Packing Detall
1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Payment type | 30% T/T prepaid and balance should be paid before loading |
| Delivery time | 30days after receving advance payment. |
| Guarantee period | 18months free service/ pay service all the machine life |
| Installation and training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. video to teach you to install and operate. please arrange board and lodging and other necessary things |
Other Product
Specializing in the production of automatic c-beam machine, CZ steel machine, roof panel equipment swap, LouCheng board equipment, glazed tile,high-speed guardrail equipment, double caigang watts, doors equipment , light steel keel equipment, solar photovoltaic equipment, water stop plate equipment, rail fence equipment, cullis sink devices, automatic doors, ridge tile equipment, sandwich composite machine, shearing machine, bending machine, slitting machine other caigang watts and cold bending forming equipment.
