Guide Pillar Steel Brick Tile Color Roof Q Tile Roll Forming Machine High Precsion

Description
Name: High Precsion Guide Pillar Steel Color Roofing Tile Roll Forming Machine Machine Color: As Request
Machine Weight: 5tons Machine Length: 8.5m
Machine Width: 1.5m Machine Height: 1.5m
Warranty: 2 Years
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

High Precsion Guide Pillar Steel Color Roofing Tile Roll Forming Machine



Working flow



Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.



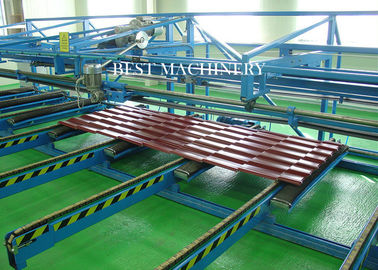

Guide Pillar Steel Brick Tile Color Roof Q Tile Roll Forming Machine High Precsion 0



Technical Parameters



Material thickness (mm) 0.3~0.9
Material yield stress (Mpa) 230~300
Max. forming speed (m/min) 4-6m/min
Roller material 45# steel with chrome treatment
Roller driven type Chain transmission
Controller & operation PLC & touch screen and button
Hydraulic system pressure (Mpa) 12
Hydraulic station motor power (Kw) 5.5
Main motor power (Kw) 3



Machine components list:



Name NO. Unit
1.De-coiler 1 set
2.Forming machine 1 set
3.Pressing and Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set



Detail Information



1. DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 13roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: 1.0"Chain

3. PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW

(5) Press tool material: Cr 12 steel after heat-treated


4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Introduction


We can design and manufacture various types of machines according to the customers' requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

Terms of Payment


a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 30 days after received advance payment.
c.Guarantee period: 24 months.

Installation and Training:


a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

After Service


a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.



Customer visited factory



Welcome to visit our factory anytime

1.You can fly to Beijing or Tianjin airport, i can go to pick you.

2.You can fly to Shanghai, then from Shanghai Hongqiao station to Cangzhou XI railway station, i will go go to pick you.



Machine Photo

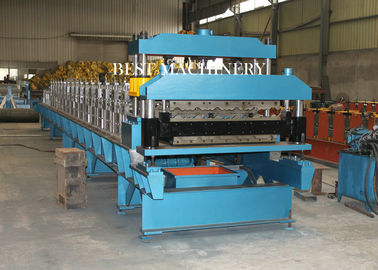

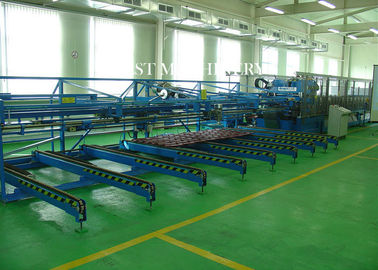

Guide Pillar Steel Brick Tile Color Roof Q Tile Roll Forming Machine High Precsion 1

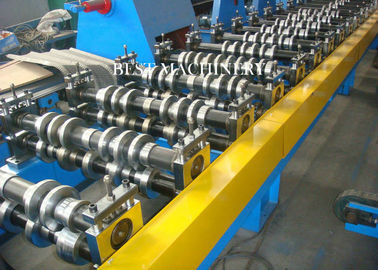

Guide Pillar Steel Brick Tile Color Roof Q Tile Roll Forming Machine High Precsion 2
