Product Details:
|
| Name: | Metal Cold Quickly Change C To Z Purlin Beam Making Roll Forming Machine | Material: | GI Black Steel |
|---|---|---|---|
| Coil Width: | As Customer Request | Warranty: | 2 Years |
| Machine Length: | 11mm | Machine Weight: | 10tons |
| Life Time: | 10years | ||
| High Light: | channel roll forming machine,steel frame roll forming machine |
||
Metal Cold Quickly Change C to Z Purlin Beam Making Roll Forming Machine
Main Parameter
| Item | Parameter | ||
| Product Specifictaion | Model | C Profile | Z Profile |
| Width | 80-300mm | 120-300mm | |
| Flange | 30-80mm(Changeable) | ||
| Edge | 10-20mm | ||
| Thickness | 1.5-3.0mm(Changeable) | ||
| Material | Q195,Q235,Hot-rolled black,Galvanized steel strips(1.5-3.0mm) | ||
| Production Capacity | 25m/min(Depends on punching work frequency) | ||
| Hydraulic Motor Power | 26Kw |
||
Technics flow
Decoiling→feeding steel strip→levelling→sheet leveling→ punchine to length→cut to length→roll forming→run out table
Machine components:
De-coiler------------------------------------------1set
Leveling device----------------------------------1set
Forming machine-------------------------------1set
Punching and Cutting device -----------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Detial Parameter
Decoinler
‹1›inner diameter of the coil:350-450mm
‹2› Max coil width :800mm
‹3›coil load: 3.0T
Forming Device:
‹1› Shaft material:Gcr15steel
‹2› roller material :Gcr15steel
‹3› transmission: Gear box
‹4› forming speed:15-20m/min
‹5› No. of forming rollers :15groups
‹6› Voltage:380V,50Hz
(7)Machine power:18.5kw
4.Punching and Cutting System:
advanced hydraulic drive, automatically cutting after forming,
no distorting or wasting, high level safety factor.
‹1› Power:7.5kw
‹2› Blade material :Cr12mov
‹3› Punching die material: Cr12mov
5.Control System:
Computer is used to control length and quality,
Machine can cut and stop automatically when required length is achieve

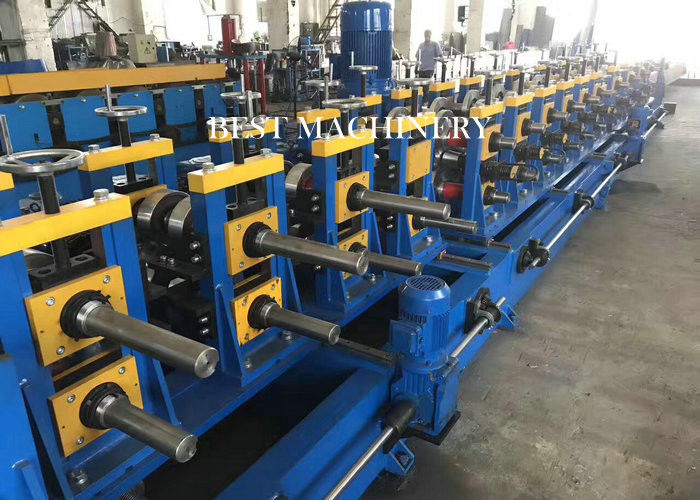

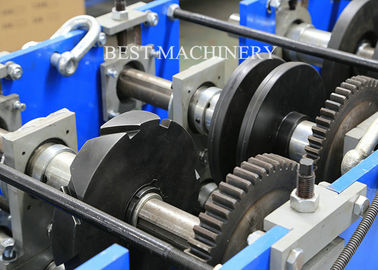

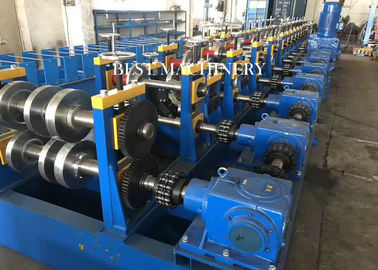

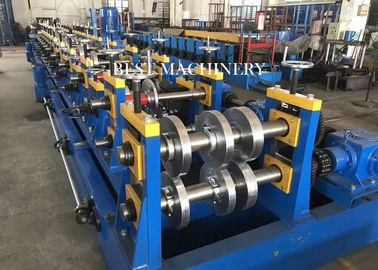

Machine Photo
Company Information:
Our company locates in "The Town of Casting Molds", enjoys convenient transportation, with No. 104 & 106 National Highway and Jinghu-Shihuang High-Speed Way nearby.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on.
Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!
Workshop
Installation and Training:
a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.
After Service
a.24moths guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.
