Product Details:
|
| Raw Material: | 0.8-1.5 | Roller Stands: | 14 |
|---|---|---|---|
| Roller Diameter: | 80 Mm | Main Power: | 7.5 Kw |
| Roller Material: | 40Cr | Shaft Material: | No.45 Steel |
| High Light: | k span forming machine,automatic roll forming machine |
||
Arch roof forming machine without columnsflat sheet bending machine

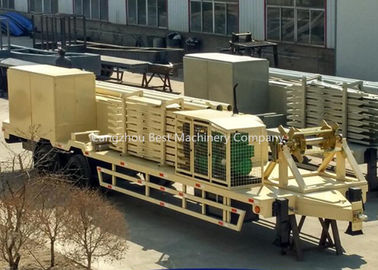

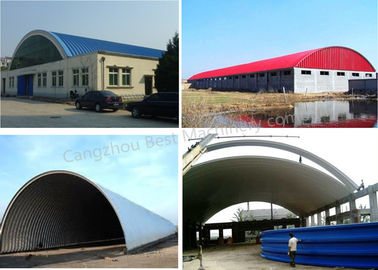

This is a mobile multi-production line, which fabricated 8 types of steel building at your will.The advantages of a steel building are no beam and column in the structure. The roofing are seamed together without bolts, screws or nuts. This is one stage working production line that reduce labour and time a lot.
Technical Data
| Size | 9,000mm×2,250mm×2,300mm |
| Total Weight | About 10,000KG |
| Cutting Material | Cr12Mov, Heat treatment |

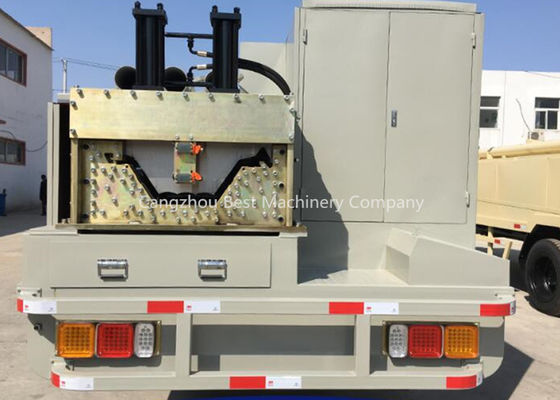

| Cutting Type | Hydraulic/Mechanical controlling cutting |
| Total Motor Power | 18.5KW |
| Forming Power | 7.5KW |
| Bending Power | 4.0KW |
| Cutting Power | 4.0KW |
| Conical Power | 1.5KW |
| Material of Rollers | 45#steel, quenched HRC 58-62 |
| Material of Shafts | 45#steel, adjusted |
| Step of Rollers | 13 |
| Max Span | ≤15m |
| Width of the Panel | Feeding width: 914mm , Finished width: 610mm |
| The Depth of the Groove | 86mm |
| Operating Factor of the Panel | 0.82 |
| Thickness of the Panel | 0.8-1.5mm |
| Working Speed | Straight Sheet: 15mm/min, Arch Sheet: 13m/min , Seaming: 6m/min |
| Electric Standard | 380V/50HZ/3PHASES or according to your requirement |
| Controlling System | PLC(Omron,Japan) |
