Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting
Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

Large Image :  Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-250
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

Description
Name: Roof Ridge Cap Steel Sheet Roll Forming Machine Supplier Hydraulic Cutting Control System: PLC
Thickness: 0.3-0.8mm Color: As Your Require
Cutting Type: Hydraulic Warranty: 2 Year
High Light:

ridge cap machine

,

steel roof tile forming machine

                           Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting



Working Flow

Decoiler----feeding----roll forming----pressing----cut to length----output table



Decoiler

Type Hydraulic Or Manual
Width 1250mm

Inner Diameter

450-550mm

Out Diameter

1500mm
Capacity 5000kg

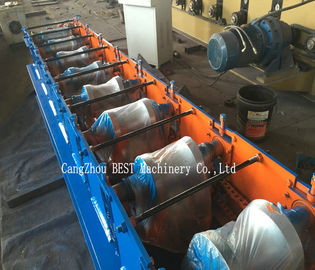

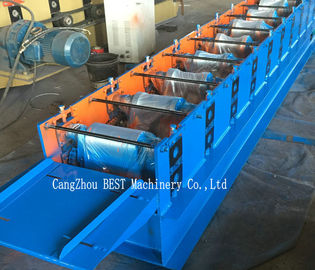

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

Shaft material: 45# steel

Frame panel thickness: 14mm

Bottom frame: 35# H-section steel
Motor Power: 3kw

Driven type: 0.6"Chain

Speed: about 6m/min

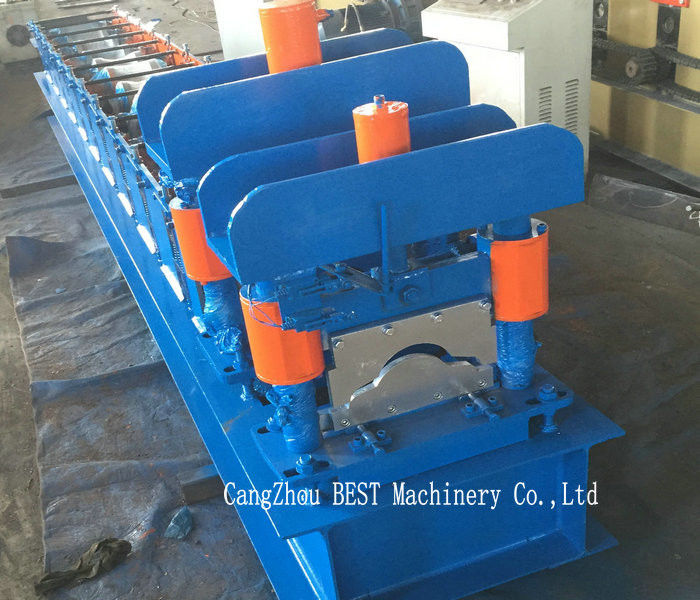

Pressing Device

Stop to press, Post to press

Press tool material: Cr12 steel heat-treated

Motor for Hydraulic Stand:3 kw

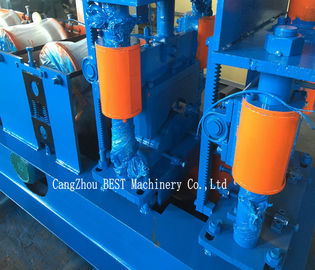

Cutting Device

Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60℃
Motor for Hydraulic Stand:3 kw



Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Encoder Brand

Omron

Length Error

±2mm

Voltage

380v/50HZ, 3Phase



Hydraulic Pump

Power 3kw
Oil Type

46# hydraulic oil

Pump brand

China Brand





Output Table

No power type
Length: 2m



Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting 0



Packing Detall

1.40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.



Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting 1





Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Other Product

roof sheet machine, roof tile machine, double layer machine, highway guardrail machine, ceiling drywall machine, roller shutter door machine, door frame machine, water tube machine, water gutter machine, decking sheet machine, automatic c z purlin machine, solar rack machine.

Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting 2
