Aluminum Glazed House Ridge Cap Forming Machine For Roof Building

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building
Aluminum Glazed House Ridge Cap Forming Machine For Roof Building Aluminum Glazed House Ridge Cap Forming Machine For Roof Building Aluminum Glazed House Ridge Cap Forming Machine For Roof Building Aluminum Glazed House Ridge Cap Forming Machine For Roof Building Aluminum Glazed House Ridge Cap Forming Machine For Roof Building

Large Image :  Aluminum Glazed House Ridge Cap Forming Machine For Roof Building

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-370
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5500-8500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building

Description
Name: Aluminum Glazed House Material Ridge Cap Roll Forming Machine Hot Sale Use: Roof Building
Color: As Your Require Cutting Type: Hydraulic
PLC: Delta Roller Diameter: 65mm
Shaft Material: 45#steel Cutting Blade: Cr12
High Light:

ridge cap forming machine

,

ridge cap machine

Aluminum Glazed House Material Ridge Cap Roll Forming Machine Hot Sale



1.Profile drawing:

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 0

2.Working flow:

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 1

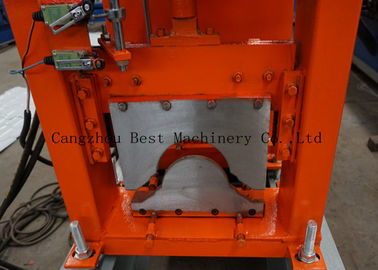

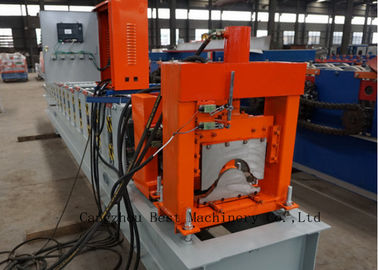

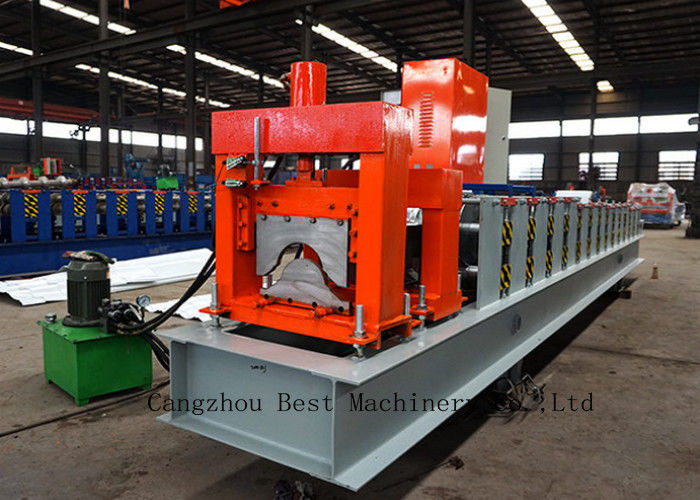

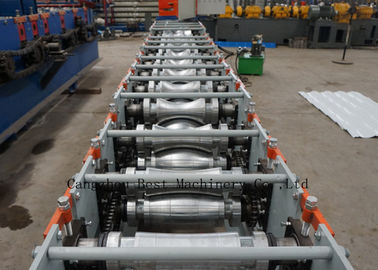

3.Machine photo:

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 2Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 3





4.Machine details:

No. Ridge Cap Roll Forming Machine
1 Suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2 Thickness of coil sheet 0.3-0.8mm
3 Coil width 500mm
4 Effective width 312mm
5 Material of main frame 350H steel
6 Diameter of Soild shaft 70mm, high grade 45# steel
7 Roller

Quenched and tempered treatment,

hard chrome coated.05-0.07mm

8 Thickness of middle plate 20mm
9 Forming station 13stations
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 5.5kw with Cycloidal reducer
12 Power of pump station 4kw
13 Forming speed About 8-15m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA(TAIWAN)/Mitsubishi
16 Material of razor blades Cr 12, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial standard ±3mm).

18 Switch CHNT
19 Transducer SAJ



5.Packing and Loading:



1)One 40ft container for loading one set machine with manual decoiler;
2) The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3)Spare parts and some small parts packed in plastic tooling box;
4)All Components Fixed by steel wire with Container.

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 4

Aluminum Glazed House Ridge Cap Forming Machine For Roof Building 5



6.Our service:



Installation and training:

1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.



Our advantage:

1.Customer's Design,Size,Color,Logo are accepted.

2.With 20 years professional manufacture experience.

3.Prompt Delivery&Competitive Price.

4.Main Makets:Middle East,Europe,North American,Africa,Southeast Asia.



After-sales Service:

1.We provide the technical support for whole life of our machines.

2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should takes all the cost,including Visa,roundtripticket etc.



Remark:

1 The machine can according to your requirement to set the color

2 Within in one year if any parts go broken we will send new ones to replace for free

3 If you want to learn more about the product please login our website or contract to us.



If you want to learn more, please send me inqury, thanks for watching our product
