Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity

Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity
Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity

Large Image :  Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: XY-1025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5500-25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity

Description
Name: Hydraulic Cutting Roof Panel Roll Forming Making Machine Manufacturer Warranty: 2 Years
Condition: New Place Of Origin: Hebei,China
Roller Material: 45# Steel Custom: Yes
Production Capacity: 8-12m/min Voltage: 380v
Material Thickness: 0.3-0.8mm Color: Blue
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Hydraulic Cutting Roof Panel Roll Forming Making Machine Manufacturer



1. Main Parameters:

1 Suitable to process Color steel plate, galvanized sheet, aluminum coils and etc.
2 Width of the feeding material 1000mm
3 Roller station 20 rows
4 Thickness of feeding material 0.3-0.8mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel
7 Diameter of shaft 80mm
8 Voltage 380V 50Hz 3phases
9 Wall thickness of main forming machine 20mm steel plate
10 Main forming machine body 300 mm H steel
11 Motor power 4+3kw
12 Size 7500*1500*1400mm
13 Weight About 5 T
14 Custom According to customer's requirements



2. Component

Name
Model/name
Quantity
Technical description

1. Decoiling system

Hydraulic decoiler

1 set
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.



2. Forming machine
Material Guiding System
1 set
For feeding in a right position no Deviation.
Precutting Device
1 set
Prevent the profile being unbeautiful because of the rough material.
Main Roll Forming Machine
1 set
About 18 steps, motor driving and chain transmission. Wall plate structure.
3. Cutting system
Hydraulic Cutting Device

Precutting and postcutting both.
4. Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.

5. Control system

PLC Control System

1 set
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6. Racking system
Exit rack
2 PC
no power.

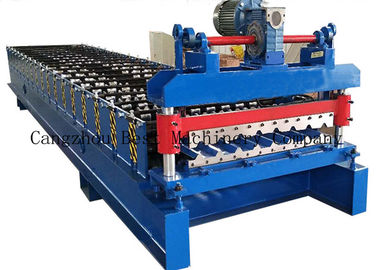

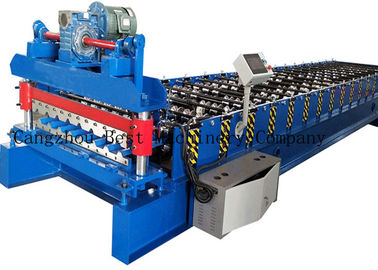

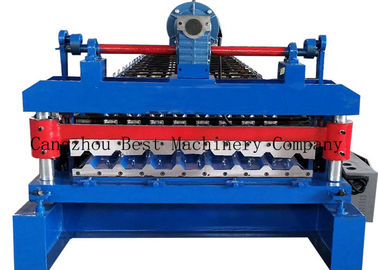

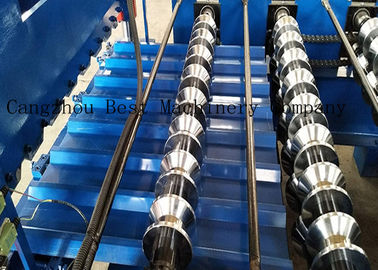

3. Machine photo:

Hydraulic Cutting Roofing Sheet Roll Forming Machine 380v 8-12m/Min Productivity 0





4. Advantage:

1) Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;

2) Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;

3) The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;

4) Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);

5) Forming machine all parts baking finishing and then assembly



5. Our service:

1) Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

2) Delivery: 30 days after receipt of advance payment

3) Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

4) Warranty: 24 months limited warranty

5) During warranty: parts are free but buyer pay for the shipping fee.





If you want to learn more, please inquiry me, I can send you details, video and so on.
