Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building

Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building
Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building

Large Image :  Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-215
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5500-7500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building

Description
Name: Aluminum Glazed House Material Ridge Cap Roll Forming Machine Hot Sales Color: Client's Request
Condition: New Usage: Buidling
Warranty: 2years After-sales Service: Ngineers Available To Service Machinery Overseas
Material: Steel Power: 4kw
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

Aluminum Glazed House Material Ridge Cap Roll Forming Machine Hot Sales

1. Machine Specification

No   Technical Specification
1 Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way
The steel coil is uncoiled by hand. Loading capacity:1.2T, Inner diameter: 500-508mm

2 Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process
It can guarantee that the products are neat
Parallel and everything is uniformity
Please refer to the equipment regulation to know the function of locate angle iron.

3 Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding
Plate surface smooth and not easy to be marked when it is being stamped

4

Hydraulic System
Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#
Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted
Computed mode has two modes: automatic and manual one
The system is easy to operate and use
PLC:EURA

5 Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

6 Output Table It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.



2. Working flow:
Decoiler→ feeding→roll forming→pressing→post cutting →output table

3. Our service:
1) Warranty :TWO yearS,and we will provide technical support for whole life of the equipment.
2) Delivery time: Within 45days after deposit receipt your payment
3) Guarantee period: 24months free service/ pay service all the machine life
4) Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine
and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



4. Company informations:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


5. Machine photos:

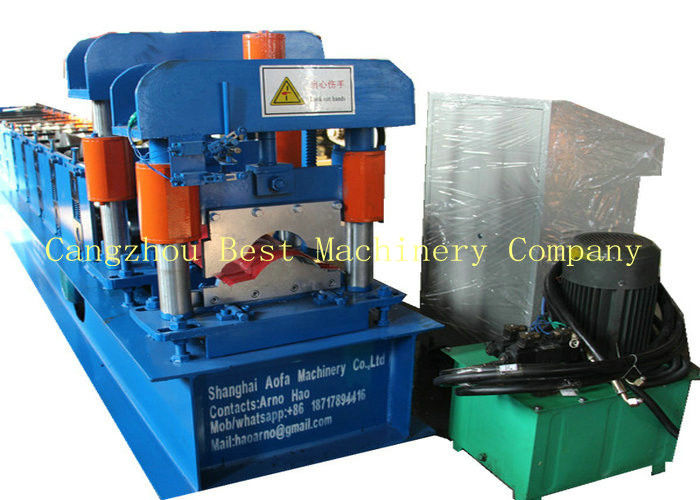

Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building 0


6. Loading:

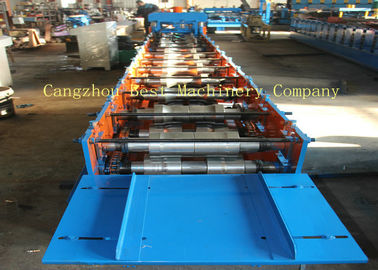

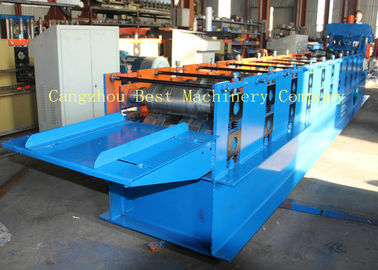

Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building 1Aluminum Glazed Ridge Cap Roll Forming Machine House Material For Building 2
