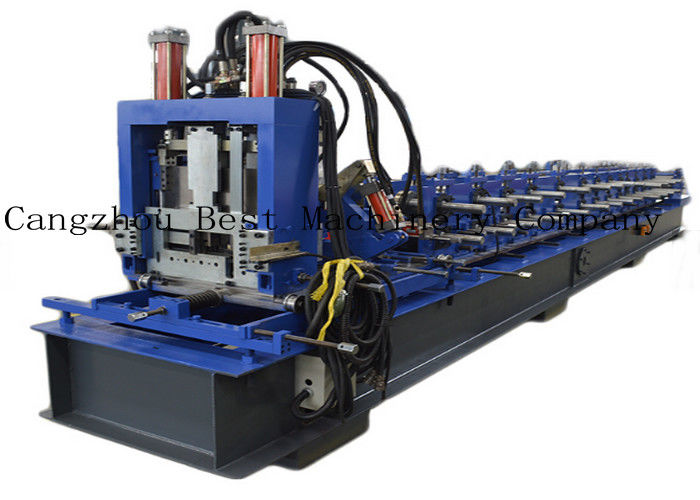

CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure
CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

Large Image :  CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500-25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

Description
Name: Hot Sale Automatic CZ Interchangeable Roll Forming Making Machine Supplier Production Capacity: 10-20m/min
Voltage: 380V,220V,440V Hydraulic Pressure: 16Mpa
Place Of Origin: Hebei,China Power: 22kw
Material Thickness: 1.0-3.0mm Control System: PLC Control
Customized: Yes Punching: Hydraulic
High Light:

c channel roll forming machine

,

steel frame roll forming machine

Hot Sale Automatic CZ Interchangeable Roll Forming Making Machine Supplier



Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



1. Echnical parameters

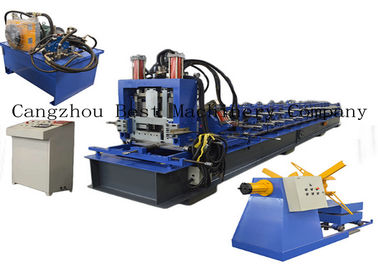

1. Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2. Control System PLC Inverter Encoder Touch Screen
3. Main Frame 400mm H-Beam
4. Total Power 22 kw
5. Power Supply 380V, 3-Phase,50Hz
6. Forming Speed 12-24m/min

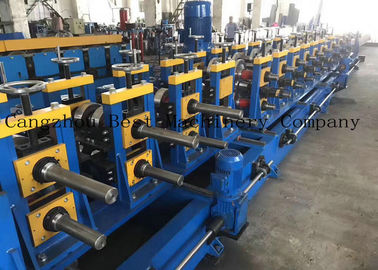

7. Roll Station 18 stands
8. Roller Diameter 80mm
9. Effective Width 80-300mm
10. Feeding Thickness 1.5-3.0mm
11. Backboard Thickness 20mm
12. Cutter Standard GCr12
13. Roller Standard Gcr15#
14. Overall Size About 8500×1000×1400mm
15. Total Weight About 10T
16. Custom According to customer's requirements

NOTE: All technical parameters can be changed according to user s need, and only as a reference.



2. C Z Purlin Roll Forming Machine Components specification

(1) Manual Uncoiler

Max.Capacity:5T

(2)Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C

(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW

(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual

(5)Encoder

The counter gauges length, and modulates pulses.

(6)Simple Stack

It is used for loading the formed plate.




3. Working flow:

CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure 0



4. Features of CZ Purlin Roll forming Machine:

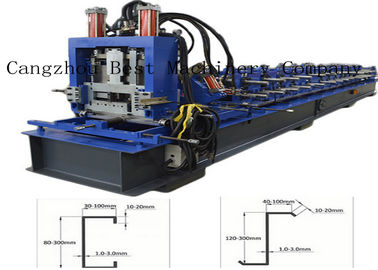

C/Z purlin interchangeable rollformer can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.



5. Our service:

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

Warranty: 24 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.
