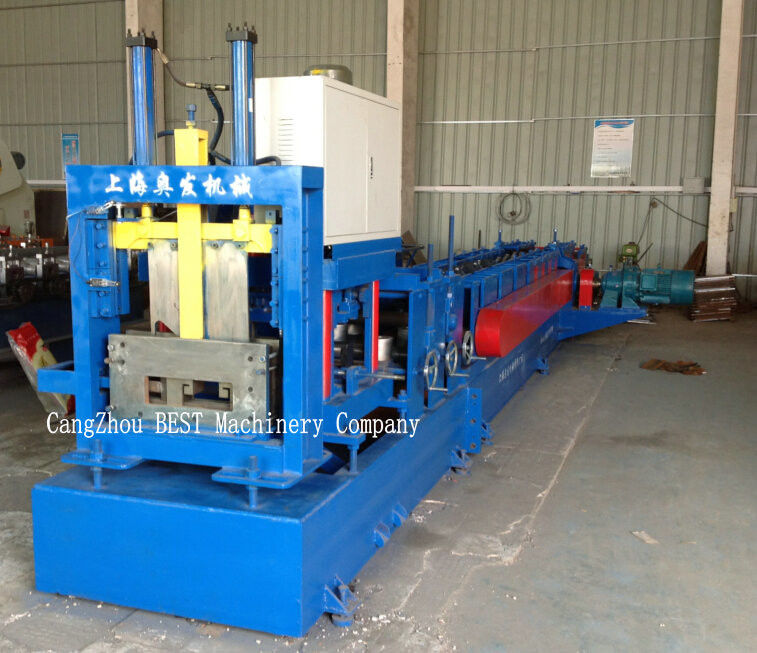

Automatic C Purlin Steel Profile Channel Roll Forming Machine 15-20m/min
Work Flow
Decoiler -----guiding -------leveling -------roll forming
(size automatically)-----Punching---------cut to length---------output table
Machine Component
| Decoiler |
1set |
| Roll Forming |
1set |
| Punching Device |
1set |
| Cutting Device |
1set |
| PLC Control Box |
1set |
| Hydraulic Pump |
1set |
| Output Table |
1set |
Decoiler
| Width |
500mm |
| Inner Diameter |
450-550mm |
| Outter Diameter |
1500mm |
| Capacity |
5000kg |
| Type |
Manual Or Hydraulic |
Leveling Device
Thickness: 1-3 mm
Rollers for Leveling: 5 rollers
Material for Rollers: GCr15 steel
Hardness for Heat Treatment: HRC55 – 60
Roll Forming Machine
(1)Rolled Material: Galvanized steel 1.5-3.0mm (2)Material Thickness: 1-3mm
(3)Rollers: 15Groups
(4)Material for Rollers: GCr15 steel after treatment
(5) Hardness for Heat Treatment: HRC55 – 60
(6)Frame panel thickness: 20mm
(7)Bottom frame: 40# H-section steel
(8)Motor Power: 18.5kw
(9)Rolling Speed: 15m / min(don’t include punching)
(10)Driven type: double sides double row 1＂Chain
Punching And Cutting Device
|
Material for Cut-Off Modular
|
Cr12 steel |
|
Hardness for Heat Treatment
|
HRC55 – 60
|
|
Cut-Off Type
|
Hydraulic, Automatic Cut-Off
|
|
Cut-Off Modular
|
1 set |
|
Motor for Hydraulic Stand
|
5.5kw |
|
Material for punching die
|
Cr12 steel |
Electronic Control System
Type: PLC Frequency Control System with double touch screen
PLC Brand: FATEK made in Taiwan
Encoder Brand: Omron
Length Error: ±2mm
Transducer: Changzhou TongLi
Language: English and Chinese
Voltage: 380v/50HZ, 3Phases (it depends on customer requirement)
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
