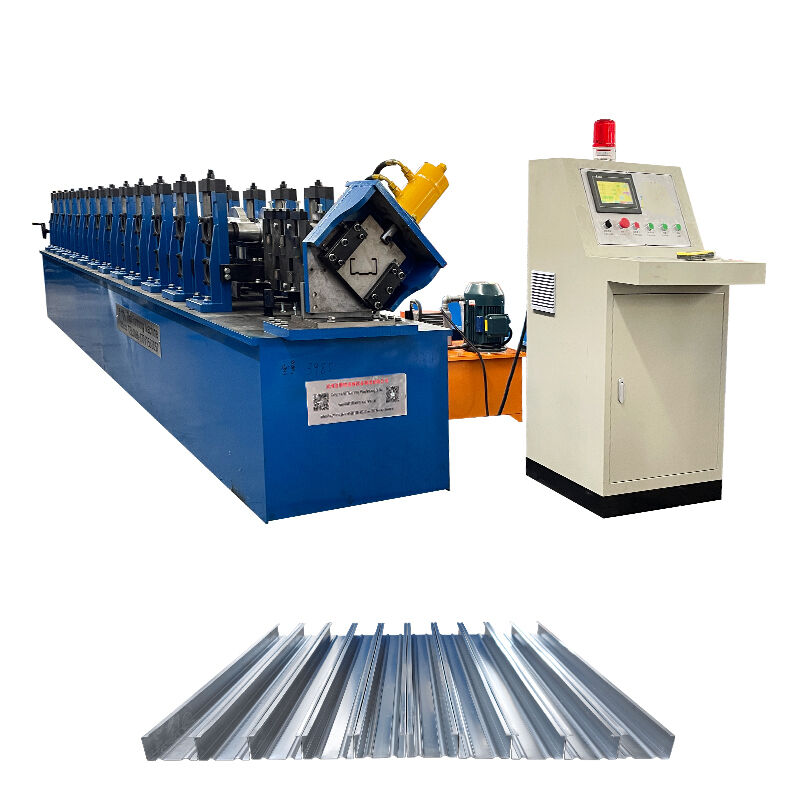

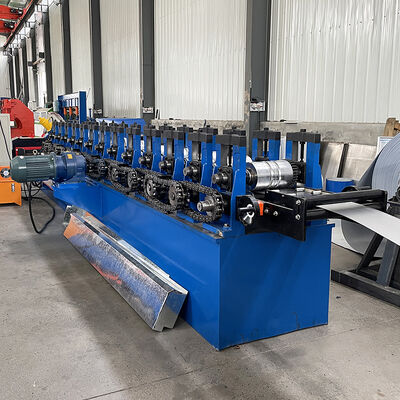

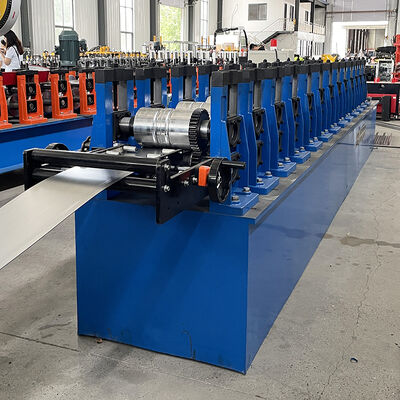

Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine

Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine
Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine
Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine

Large Image :  Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine

Product Details:
Place of Origin: Hebei. China
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 15sets/month
Contact Now

Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine

Description
Name: Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine Color: As Your Require
Bottom Frame: 350H Steel Motor Power: 11kw
Voltage: 380V/50HZ/3PHASE Warranty: 2 Year
Highlight:

Steel galvanized C purlin machine

,

Cold roll forming gutter channel

,

Purlin roll forming machine with warranty

Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine
Auto Stop Cutting C Purlin Roofing Truss Making Roll Forming Machine
Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine 0
Production Workflow
Decoiler → Guiding → Leveling → Roll Forming → Cut to Length → Output Table
Machine Components
Component Quantity
Electric Decoiler 1 set
Roll Forming 1 set
Punching Device 1 set
Cutting Device 1 set
PLC Control System 1 set
Hydraulic Pump 1 set
Output Table 1 set
Decoiler Specifications
Parameter Manual Type (Standard) Hydraulic Type (Optional)
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner Diameter 450-550mm 450-550mm
Outer Diameter 1500mm 1800mm
Roll Forming Machine Specifications
  • Material Thickness: Galvanized steel 1-2.0mm
  • Rollers: 13 Groups
  • Roller Material: Gcr15 steel polished and coated with quenching HRC55-60°
  • Frame Panel Thickness: 20mm
  • Bottom Frame: 36# H-section Steel
  • Motor Power: 11kw
  • Rolling Speed: 8-10 m/min
  • Driven Type: 1.5" Chain
  • Shaft Material: #45 steel after treatment
  • Shaft Diameter: 70mm
Punching and Cutting Device
  • Type: Hydraulic cutting
  • Power: 3kw
  • Cut-Off Modular Material: Cr12 steel after treatment
  • Punching Die Material: Cr12 steel
PLC Control System
Feature Specification
Type PLC Frequency Control System with touch screen
PLC Brand Delta
Encoder Brand Omron
Length Error ±2mm
Language English and Chinese
Hydraulic Pump
Parameter Specification
Oil Type 46# hydraulic oil
Pump Brand China brand
Output Table
  • Type: No power type
  • Length: 2m
Company Profile
Cangzhou Best Machinery Manufacturing Co., LTD specializes in manufacturing high-end cold bending forming equipment. With professional engineers providing technical guidance and over 20 years of design experience, we offer specialized design and manufacturing services. Our comprehensive approach includes equipment installation, guidance, production, and commissioning as a complete one-stop service.
Additional Machinery Products
Roof sheet machine, roof tile machine, C Z purlin machine, double layer machine, highway guardrail machine, cable tray machine, water tube machine, ridge cap machine, water gutter machine, light steel keel machine, decking sheet machine, roller shutter door machine, and more.
Customer Service
Re-sale Service
  • Invitation letter provided for factory visits and machine inspections
  • Quality products with competitive pricing and reliable service
Selling Service
  • Production schedule updates and prompt delivery
  • Cost-effective shipping solutions with fast forwarders
  • Continuous customer support availability
After-sale Service
Comprehensive support available via WhatsApp or Telephone for any questions
Steel Galvanized C Purlin Gutter Channel Cold Roll Forming Machine 1
