Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases
Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases

Large Image :  Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD12500-USD42500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases

Description
Name: Building Material Customized W Beam Highway Guardrail Roll Forming Machine Use: Highway Production
Condition: New Warranty: 2 Years
Voltage: 380V 50Hz 3phases Control System: PLC Control
Place Of Origin: Hebei,China Color: As Your Request
Speed: 12-15m/min Customized: Yes
High Light:

highway guardrail forming machine

,

guardrail roll forming machine

Building Material Customized W Beam Highway Guardrail Roll Forming Machine



Profile drawing for reference:

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 0

Finished product:

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 1

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 2

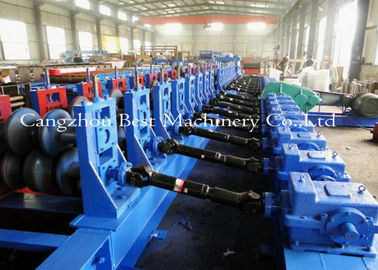

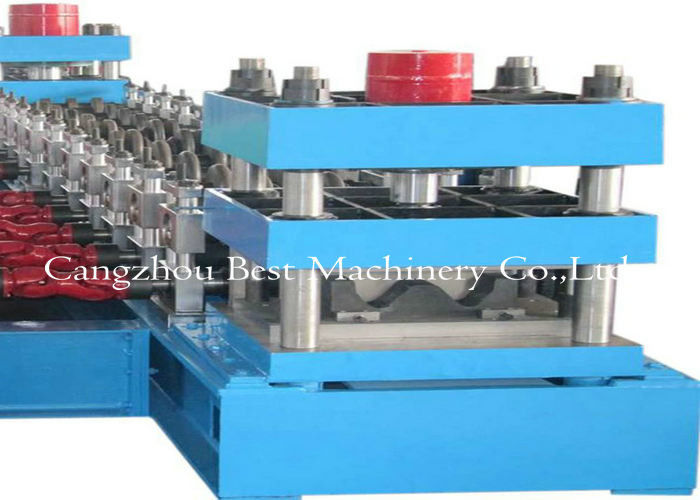

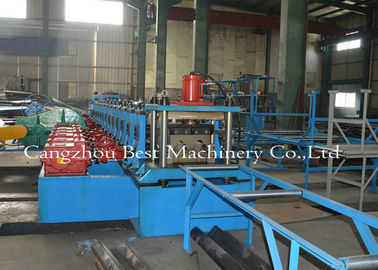

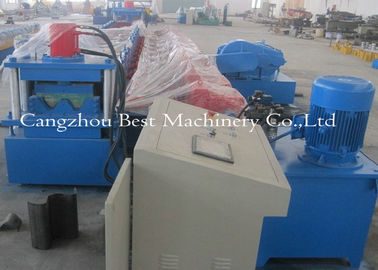

Machine photos:

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 3

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 4

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 5

Machine details:

Decoiler
Steel coil width ( Max ): from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 6

Punching

using hydraulic punching
oil cylinder dia: DIA 140mm
working pressure:20mpa
mould material: Cr12 quenched 58°-62°
hydraulic power:7.5kw
size: 1.5m long*1.1m wide*1.2m high

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 7

Forming section

main motor power: 30kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or Changzhou
drive: gearbox driving with shafts
The thickness of the sheet: 2-3 mm
main shaft dia: DIA 100mm material: number 45 forge steel
roller material: GCR15 quenched 58°-62°,chromed
roll station:13 stations, guide pillar type.
Timing by transducer:5m--20m/min(not including punching)
Transducer: Yaskawa made in Japan. 380V 50HZ

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 8

Cutting

Cutting: hydraulic cut
knife material: Cr12,quenched 58°-62°
oil cylinder dia: 150mm
working pressure: 30mpa
working journey: 80mm

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 9

Hydraulic



1. Hydraulic station power: 11kw
2. Hydraulic pressure: 12-20Mpa

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 10

Control carbinet

(1) Voltage, Frequency, Phase: 380V, 50Hz, 3Phase( It depends on the buyer’s requirement.)
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5) Length inaccuracy can be amended easily.
(6) Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
(8) Language: Chinese and English

Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 11
Run out table
Jointed by 60mm*40mm tube
size:1.5mlong*0.8mwide*0.6-1mhigh
Quantity: 2 units
Building Material Highway Guardrail Forming Machine 380V 50Hz 3 Phases 12



Features:

1. This production line can be automatically run by inputting some data (like products length and batches) to the PLC control system.
2. Very strong base frame is configured to avoid vibration.
3. All the rollers have been processed by CNC lathe and polished on the surface to guarantee the accuracy.
4. The rollers have gone through hardened treatment to guarantee long lifespan.
5. We can also design the crash barrier roll forming machine according to customer’s requirement.



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
