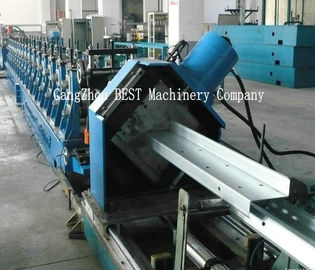

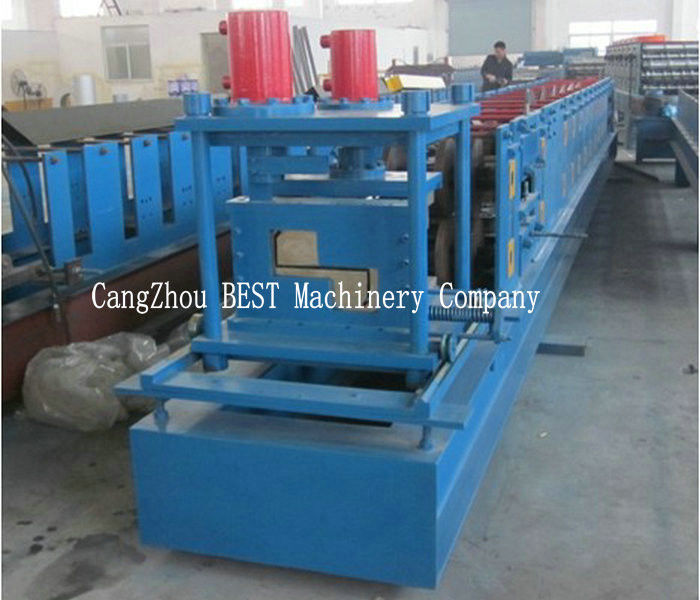

Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine

Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine
Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine

Large Image :  Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine

Product Details:
Place of Origin: Hebei. China
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine

Description
Name: Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine Color: As Your Require
Bottom Frame: 350H Steel Motor Power: 11kw
Voltage: 380V/50HZ/3PHASE Warranty: 2 Year
High Light:

c channel roll forming machine

,

steel frame roll forming machine

Hydraulic Cutting PLC Control Z Purlin Steel Channel Roll Forming Machine



Working Flow

Decoiler -----guiding -------leveling -------roll forming

-----Punching---------cut to length---------output table



Machine Component

Decoiler 1set
Roll Forming 1set
Punching Device 1set
Cutting Device 1set
PLC Control System 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm



Leveling Device

Thickness: 1-3 mm
Rollers for Leveling: 5 rollers



Roll Forming Machine

Material Thickness: Galvanized steel 1-3.0mm

Rollers: 15Groups
Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 11kw
Rolling Speed: 8-10 m / min

Driven type: 1.5"Chain

Material for shaft: #45 steel after treatment

Diameter of shaft: 70mm



Punching And Cutting Device

Type: hydraulic cutting
Power:3kw
Material for Cut-Off Modular:Cr12 steel after treatment

Material for punching die: Cr12 steel



PLC Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Encoder Brand

Omron

Length Error

±2mm

Language

English and Chinese





Hydraulic Pump

Oil type

46# hydraulic oil

Pump brand

China brand





Output Table

No power type
Length: 2m



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Other Machine

roof sheet machine, roof tile machine, c z purlin machine, double layer machine, highway guardrail machine, cable tray machine, water tube machine, ridge cap machine, water gutter machine, light steel keel machine, decking sheet machine, roller shutter door machine and so on.



Re-sale Service :
1. Send you invitation letter, if you wanna visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by whatsapp or Telephone.
