Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty
Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty

Large Image :  Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-312
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5500-USD7500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1set/month

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty

Description
Name: Metal Roof Building Material YX-312 Ridge Cap Roll Forming Making Machine Production Capacity: 10-15m/min
Use: Roof Power(W): 3+3kw
Warranty: 2 Years Color: As Your Request
Customized: Yes Voltage: As Your Request
Thickness: 0.3-0.8mm Place Of Origin: Hebei,China
High Light:

ridge cap machine

,

steel roof tile forming machine

Metal Roof Building Material YX-312 Ridge Cap Roll Forming Making Machine



Our service:

1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now

3). Service: We could send the technician to your country to fix the machine if you need.

4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.



Our Ridge Cap Forming Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

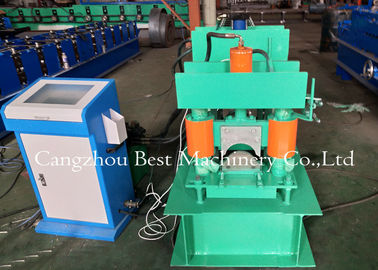

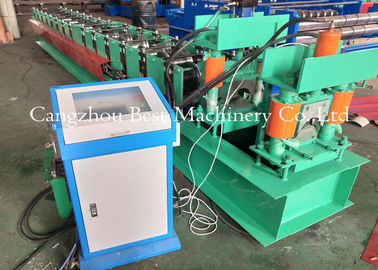

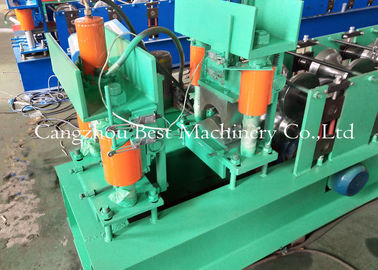

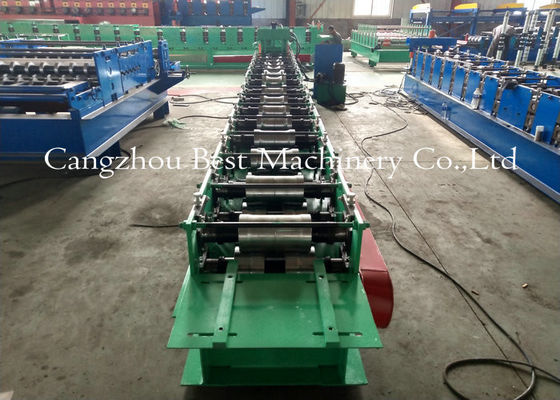

Machine photos:

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 0

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 1

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 2

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 3



Machine Parameters:

NO Name Specification
1. Decoiler Weight capacity PPGI steel
Coil Width 305mm
Inner Diameter 470-530mm
2. Film covering Width 305mm
3. Forming Machine Roller station 14Rows
Diameter of shaft 70mm
Material of rollers 45#Steel
Technology of rollers Quench to increase the hardness
Surface of rollers Plate hard Chrome 0.05mm
Main bearing 6210 /bearing steel
Frame 300MmC-Beam
Middle plate thickness 16mm
Chain 1inch





4.





Cut Off

Operation Automatic hydraulic type
Material of blade CR12 steel
Oil pressure station Motor,oil pump,electromagnetic valve etc.
Motor of oil pressure station 3KW
Working pressure 0-14MPA



5



Automatic stacker



Size 6Meters
Type Automatic Side Roll-out
Main motor 5.5KW
voltage 480V 60HZ



6.



Electric Box

With touch screen

Data input imperial system (inches and decimals)
PLC control system Delta Brand
Frequency converter Delta Brand
Counter Omron
On-Off Delixi
7. Language English
8. Length of line 10Meters
9. Speed 4M/Minut





Other Product:

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 4Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 5

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 6Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 7

Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 8Metal Roof Building Material Ridge Cap Forming Machine 0.3-0.8mm Thickness 2 Years Warranty 9
