CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm

CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm
CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm

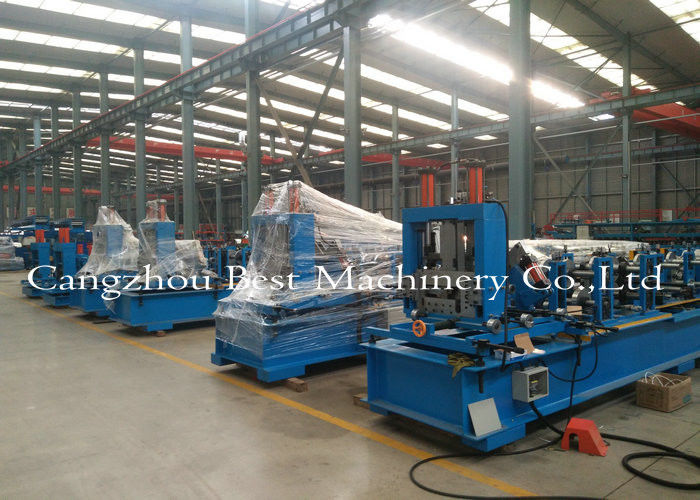

Large Image :  CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500-USD37500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm

Description
Name: YX-80-300mm Fully Automatic CZ Purlin Interchangeable Forming Making Machine Warranty: 2 Years
Customized: Yes Use: Roofing
Color: As Your Request Cutting Type: Hydraulic
Power(W): 22kw Production Capacity: 8-12m/min
Place Of Origin: Hebei, China (Mainland) Model Number: CZ80-300
High Light:

c channel roll forming machine

,

steel frame roll forming machine



YX-80-300mm Fully Automatic CZ Purlin Interchangeable Forming Making Machine



1. Profile drawing for reference(C&Z purling interchangeable)

Width: 80-300mm

Flange: 40-80mm

Lip: 10-20mm





2. Machine parameters:

1). Suitable material to produce: Cold-rolled steel strip and heat-treated galvanized steel strip

2). Thickness of raw

material:

Q345: 1.5-2.5mm

Q192: 1.5-3.0mm

Q235: 1.5-3.0mm

3). Decoiler: Decoiler type Manual type,passive type
Bearing: 3-4tons
Diameter 350-520mm
4). Power of machine: Hydraulic motor power: 22kw
Hydraulic punching&cutting: 5.5kw
5). Hydraulic pressure: 16mpa
6). Roll forming system: Feeding&levelling device: Gcr15
Speed of machine: 15-20 meters/min
Material of roller: Cr15 with quenched treatment
Roll stations: 18 groups
Material of main shaft:

40cr with high frequency

grinding and heat treatment

Diameter of main shaft: 70mm
Punching type: Hydraulic punching
Punching material: Cr12
7). Cutting: Cutting material: Cr12 Cr12MoV Cr12 (total three blades)
8). Control system:

PLC controlControl the quantity &punching length& cutting length automatically

The Machine will be stopped while it is punching and cuttingAutomatic Length measures and quantity counting (precision +- 3mm)

Voltage: 380V, 3 Phase 50Hz

PLC manufacturer: Japan Panasonic

Transducer: Japan Panasonic

9). Product support frame: 6 meters
10) Weight of machine: 9.1tons
11) Measurement: 9.1*1.4*1.8m





3. Payment:

Payment

There are 3 plans for you.you can choose the best plan.

a.30% T/T deposit in advance and the balance of 70% is paid after confirmation and before shipping.

b.Irrevocable LC at sight.

c.30% TT deposit,and balance DA 60 days for part of countries with extra charges.Please contact me for details if you need this plan.

Delivery time

1.With 45 working days after received deposit ,we will finish the machine.

2.We will take photos and videos for your confirmation.

3.You need send balance and make delivery within 1 month.After you send the balance,you can book container.

4.Once container is confirmed,we load the container within 5 days.



4. FAQ:

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and have skilled technicians available across the world.

2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology to improve our machines constantly. We have experts from domestic-leading machinery corporation as well as sals elites.
Wokers, traders, designed as a family to insure best interest of our clints.





3), Q: How does your factory do regarding quality control?
A: Quality is priority. OUR people always attach great importance to quality control during the whole process. Every product will be fully assembled and carefully tested before packed.

4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.


Please inquiry me, get more details!!!



5. Product feature and usage:
The products of C or Z shape purline forming machine have excellent anti-bending property and are
easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale
construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on



6. Machine photos:

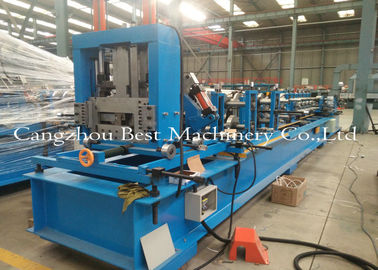

CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm 0

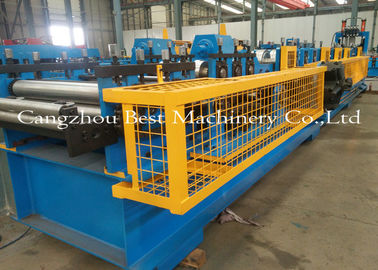

CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm 1

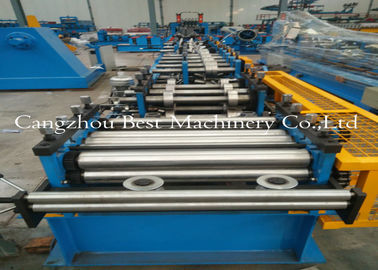

CZ Purlin Interchangeable Forming Making Machine Fully Automatically YX-80-300mm 2
