Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Auto Change Size Purlin Roll Forming Machine Metal Structure 2 Years Warranty

Description
Product Name: Auto Change Size Metal Structure C Z U Purlin Roll Forming Machine Transmission: Chain Or Gear Box
Machine Speed: 4-6m/min Roller Material: Gcr15 Steel
Shaft Material: 45#steel Warranty: 2 Years
Life Time: More Than 10 Years
High Light:

c channel roll forming machine

,

steel frame roll forming machine



Auto Change Size Metal Structure C Z U Purlin Roll Forming Machine



Advantage:One machine can produce  C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.



The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


Machine Component



De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set



Machine Parameter



Suitable material color steel coils
Installation Dimension (L*W*H): 9500×1400×1350mm
Main motor power 18.5kw, 3 phase
Hydraulic station power 15kw
Hydraulic oil pump CB-E 310
Thickness of material 1.5-3.2mm
Electric tension 380V 3phase 50HZ or as the customer's requirements
Material of roller 45# steel
Controlling system PLC
Processing speed 12-14m/min
Cr-Plating Size 0.05mm
Material of cutting blade Cr12 mould steel with quenched treatment
Roller Diameter 80mm
Roller station 8-20 Rollers
Roller material high grade 45#steel; Cr12 quenching
Total Weight 11T























































RFQ



1. Are you manufacturer or trading company?



We are manufacturer for more than 10 years



2. What is the delivery time?



For standard machine, delivery time is usually 60-70 working days.



3. What is your payment term?



30% TT deposit paid in advance, 70% balance paid before shipping.



4. How can I evaluate your company.



Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.



5.How to visit our company:

A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

(1hour), then we can pick up you to factory(40min).

Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west

station(4.5 hours), then we can pick up you to factory(40min).

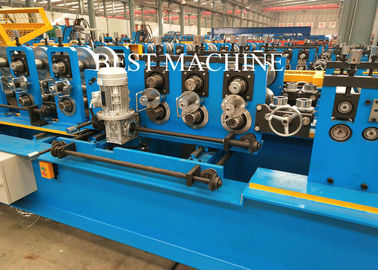

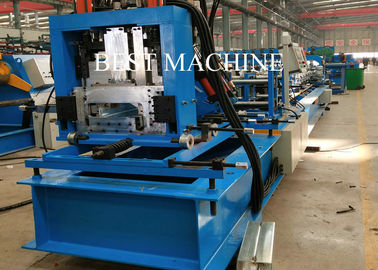

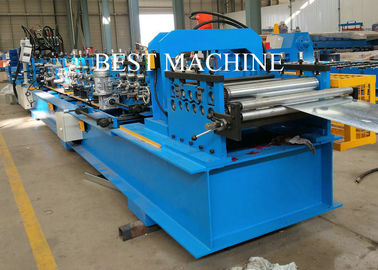

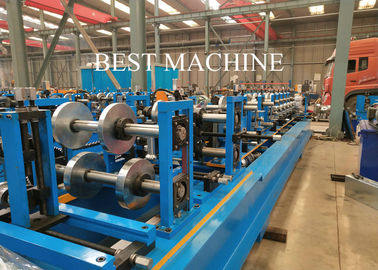

Machine Photos



Auto Change Size Purlin Roll Forming Machine Metal Structure 2 Years Warranty 0



Auto Change Size Purlin Roll Forming Machine Metal Structure 2 Years Warranty 1
